Description

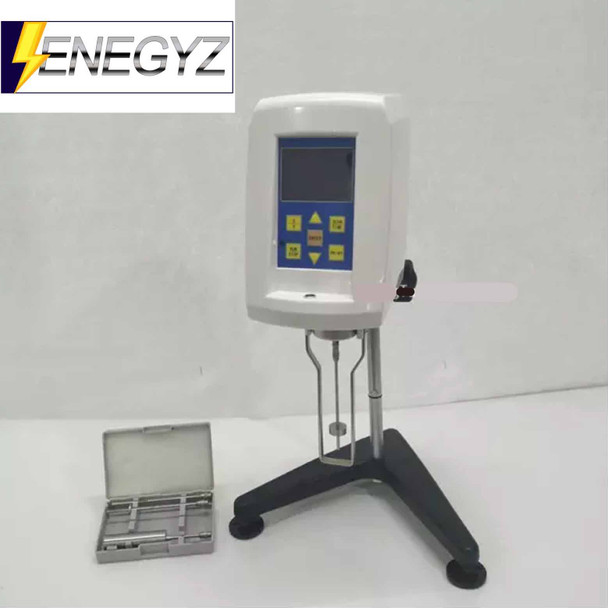

Enegyz Rotational Digital Viscometer stable rotate speed and high accuracy
This rotational digital viscometer goes on stable rotate speed high accuracy and easy to operate, gives error alarm when there is a need and has automatic scanning capability.
This digital viscometer is the instrument is adopting the most advanced mirco-chip computer technology. It has imported stepping motor and LCD display screen;It can provide the best combination for rotor and rotation speed. It will automatically display the maximum measuring range for the combination chosen and the Screen can directly display the following data:
viscosity,
rotate speed,
percentage torque,
rotor model and
temperature for the testing objects.
digital viscometer can measure the absolute viscosity for newtonian liquids and apparent viscosity for non-newtonian liquids.If choose viscometer data processing software,can analyze the simple rheological property for non-newtonian liquids.
Technical Features of Enegyz Rotational Digital Viscometer
| 1 | Model | GH-DJ-5S |
| 2 | Display | LCD display English |
| 3 | Automatic scanning function | Automatically recommends the best combination of rotor and rotational speed for easy operation and acurate speed |
| 4 | Automatic Range displaying | Automatically displaying the measurable maximum range for the combination of rotor and the rotation speed |
| 5 | Rotation Speed (r/min) | 6/12/30/60 |
| 6 | Measuring range (mPa.s) | 1.0-100,000 |
| 7 | Rotor | Standard package 1,2,3,4 (Can choose 0# rotor to measure the lowest viscosity that can be less than 10) |
| 8 | Measuring error (Newtonian liquid) | +_ 1% |
| 9 | Repetitive Error (Newtonian Liquid) | 0.5% |
| 10 | Temperature measurement | Yes |
| 11 | Data Output Interface | Available |
| 12 | Data processing software | Available and Optional |
| 13 | Constant Temperature | Available and optional |
| 14 | DImension of product (mm) | 300 x 300 x 450 |
Application of Rotational Digital Viscometer
This viscocity meter can be used to measure viscosity of grease, paint, coating, seizing agent, spinning, food,medical products, cementing compounds,cosmetic.,etc.
Features:
- Displays the measured data directly there is no need to do the manual calculation.
- Adopt the advanced newest micro-computer drive technology and imported stepping motor.It has the stable rotate speed.
- Adopt the advanced power source technology.the variation of power frequency will be no effection on the measuring accuracy.
- Integration design,easy operation,convenient and reliable.
- Function of automatic scanning.provide the best combination for rotor and rotate speed.make sure accurate testing result.
- Automatically displaying the maximum measuring range for the combination chosen of rotor and rotate speed.
- Can equip the adaptor ("0" rotor).of which for measuring lowest viscosity.to measure the viscosity at 1-100mpa.s.
- Can choose the temperature probe,real-time measure the temperature of testing objects.
- Has the interface of RS-232 or the USD2.0,can output data.and connect external device.
- Can choose the data processing software.
