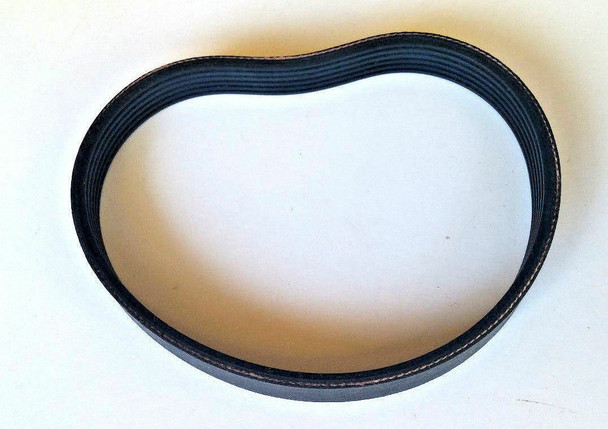

Replacement Drive Belt — 13" Planer, Poly-V J Profile (6 Ribs, 6PJ348) — Fits VEVOR M1B-LS-3305 / M1BLS3301
Overview
High-quality Poly-V (micro-V) J-profile drive belt with 6 ribs and ~348 mm effective length (“6PJ348”). This belt transfers motor power to the cutterhead on many 13-inch import planers, including VEVOR’s popular 13" machines. Built for smooth, quiet drive and reduced slip under load.
Confirmed VEVOR compatibility:
• M1B-LS-3305 (13" thickness planer) Manuals
• M1BLS3301 (13" wood planer) — belt sold specifically for this model.
If your VEVOR model’s documentation or the old belt markings show 6PJ348 (may appear as 348J6, PJ348, 6J348, or 9401-6PJ348), this is the correct replacement.
Key Features
-
Correct profile & length: Poly-V J profile, 6 ribs, 6PJ348 size for stable tracking and grip.
-
Smooth power transfer: Multi-rib design minimizes vibration for cleaner finishes.
-
Durable compound: Built to resist glazing and belt stretch in woodworking dust/heat.
-
Quiet operation: Micro-V contact reduces belt squeal vs. standard V belts.
-
DIY-friendly: Simple swap; no special tools in most cases.
Specs
-
Type: Poly-V (micro-V) belt
-
Profile: J
-
Rib count: 6
-
Size (code): 6PJ348 (aka 348J6 / PJ348 / 6J348 / 9401-6PJ348)
-
Application: Motor → Cutterhead drive on 13" planers
Compatible VEVOR Machines (verified)
-
VEVOR M1B-LS-3305 — 13" thickness planer (two-speed variant; U.S./EU manuals reference the model). Manuals++1
-
VEVOR M1BLS3301 — 13" wood planer (multiple sellers list a dedicated replacement belt for this exact model).
Likely fits other 13" VEVOR planers that explicitly call for 6PJ348 (or its alias codes) in the manual or on the original belt. Always match the code before purchase.
Cross-Reference Codes
-
6PJ348 (standard size code)
-
348J6 / PJ348 / 6J348 (equivalent ways vendors label the same belt)
-
9401-6PJ348 (common catalog notation)
How to Verify Fit (60-second check)
-
Read the old belt print—look for 6PJ348 / 348J6 / PJ348 / 6J348.
-
Count ribs on the pulleys → should be 6.
-
Measure effective length (around the outside) ≈ 13" / 348 mm.
Installation Tips
-
Unplug the planer; remove the side cover.
-
Release belt tension (motor plate or tensioner), slip off the old belt, route the new belt, then re-tension so there’s a firm drive with slight deflection at finger pressure.
-
After installation, spin by hand to confirm tracking; run the planer briefly and re-check tension after the first few boards.
FAQs
Q: Will this fit my VEVOR 12.5" planer (e.g., M1B-LS-3302)?
A: Not guaranteed—12.5" models can use different belt lengths. Check your manual or old belt for 6PJ348 or the alias codes above. If it shows a different code, contact us for the exact match.
Q: The listing I saw says “for M1BLS3301,” but my manual is M1B-LS-3305—ok to use?
A: Yes—both are 13" VEVOR planers, and this size is sold for M1BLS3301 and confirmed for M1B-LS-3305. Just verify your old belt code is one of the 6PJ348 variants. Manuals+
