Description

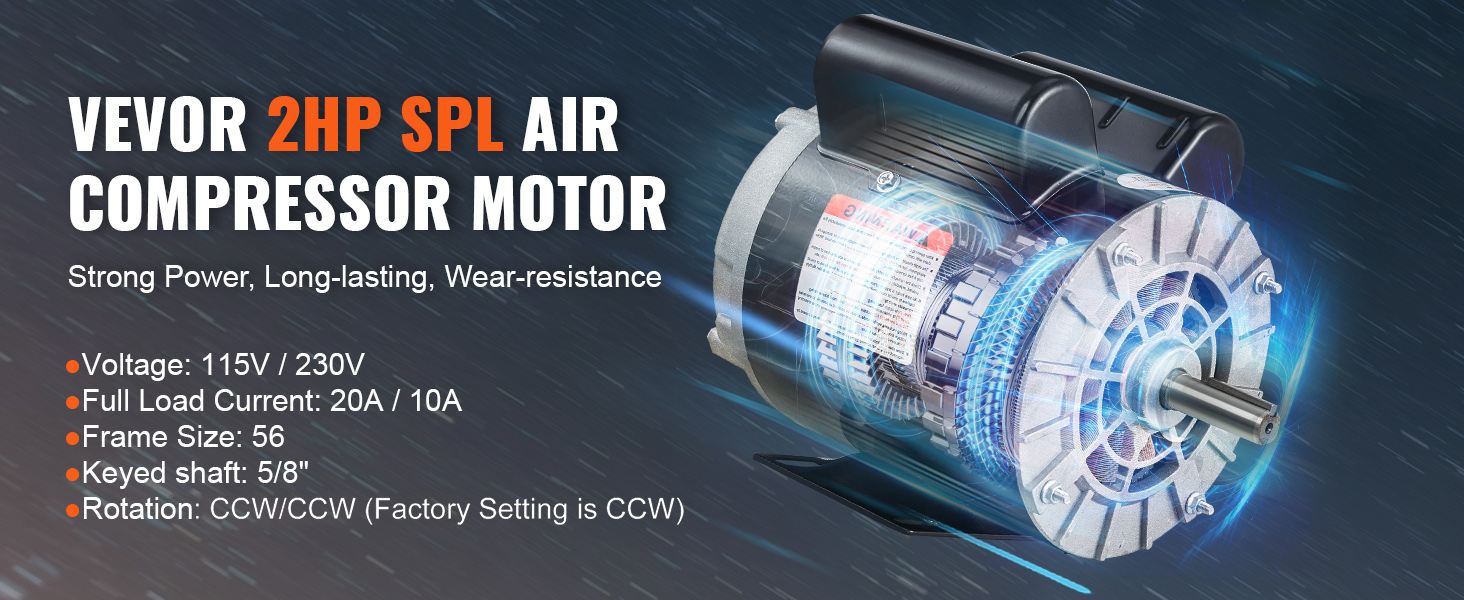

Revitalize Your Air Compressor with the Efficient and Powerful VEVOR 2HP SPL Motor – Engineered for Reliable Performance
Is your air compressor lacking the power it once had? The VEVOR 2HP SPL Air Compressor Motor offers a dependable and efficient solution to bring your air system back to life. Designed for a range of industrial and commercial applications, this high-speed motor provides the necessary power for consistent air compression. With its dual voltage capability and reversible design, installation is simplified, making it an excellent choice for both replacements and upgrades.
Experience Reliable Power for Your Air Compression Needs:
The VEVOR 2HP SPL Air Compressor Motor is engineered for optimal performance, delivering the power required for various air-powered tools and equipment. Operating at a high speed of 3450 RPM, this single-phase Split-Phase (SPL) motor provides efficient air compression. Its dual voltage compatibility (115V/230V) with corresponding full load amps (20A at 115V, 10A at 230V) offers versatility for different power configurations. The 1.0 Service Factor (SF) indicates the motor's capacity to handle its rated load under normal operating conditions.
Durable Construction for Long-Term Operation:
Built with high-quality steel materials, the VEVOR 2HP electric motor is designed for durability and longevity. The Open Drip-proof (ODP) enclosure makes it suitable for use in clean and dry indoor environments, providing essential protection to the motor's internal components. The sturdy steel frame further enhances the motor's robustness, ensuring reliable performance over extended periods.
Simplified Installation with Dual Rotation Flexibility:
The VEVOR 2HP air compressor motor features a reversible design, supporting both Clockwise (CW) and Counter-Clockwise (CCW) rotation. This flexibility simplifies the wiring process during installation, ensuring compatibility with a wide range of air compressor models. The motor comes with a standard 56 frame, a common mounting standard, along with a dependable 5/8" keyed shaft with a length of 1.88" and a 0.188" keyway size, providing a secure connection to your compressor pump. The efficient cooling system, featuring a large fan, helps to dissipate heat effectively, preventing overheating during operation.
Key Features:
- Efficient 2HP SPL Motor: Provides reliable power for various air compressor applications.

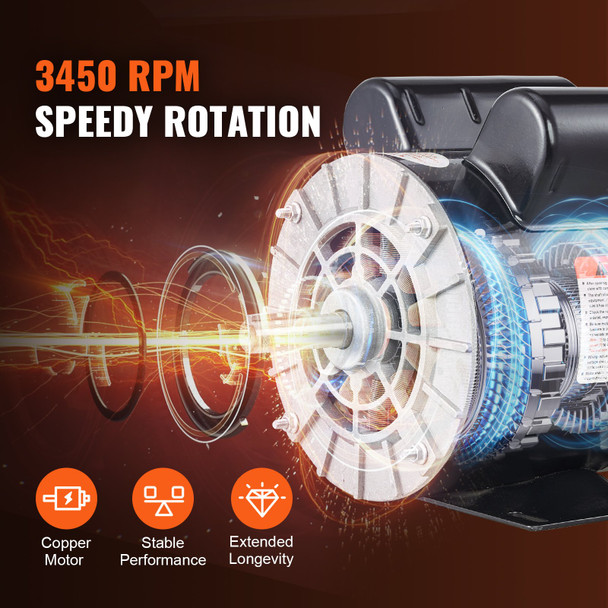

- High-Speed 3450 RPM Operation: Ensures efficient air compression and tool operation.
- Dual Voltage Compatibility (115/230V): Offers versatile installation options for different power supplies.
- Durable Steel Construction: Offers robust protection and extends the motor's lifespan.
- Reversible CW/CCW Rotation: Simplifies installation and ensures compatibility.
- Standard 56 Frame: Compatible with a wide range of air compressor units.
- Dependable 5/8" Keyed Shaft: Ensures a secure connection to the compressor pump.
- Efficient Cooling System: Prevents overheating for consistent performance.
- Open Drip-proof (ODP) Enclosure: Ideal for clean and dry indoor environments.

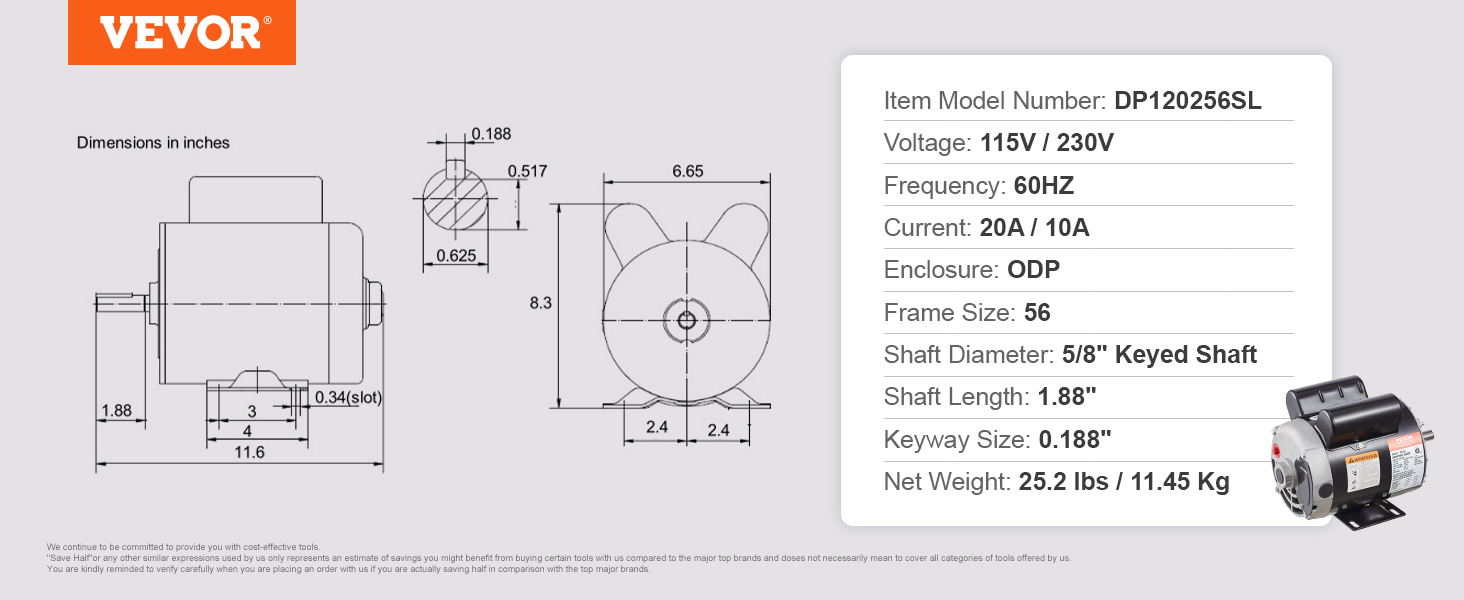

Technical Specifications:
- Horsepower: 2 HP
- Phase: Single Phase
- Voltage: 115V/230V
- Amperage (Full Load): 20A (at 115V), 10A (at 230V)
- Speed: 3450 RPM
- Frame: 56 Frame
- Shaft Diameter: 5/8"
- Shaft Type: Keyed
- Shaft Length: 1.88"
- Keyway Size: 0.188"
- Frequency: 60Hz
- Service Factor: 1.0
- Enclosure: Open Drip-proof (ODP)
- Weight: (Provide specific weight if available)
Ideal Applications:
- Replacement motor for 2HP single-stage air compressors.
- Powering smaller industrial air tools and equipment.
- Suitable for commercial workshops and garages.
Customer Reviews Highlight:
- "This motor is exactly what the description says. It’s strong and so far have not needed to contact support. Thanks vevor." - DJ
- "Everything went well, on time delivery, everything fit without any problems runs as it should, satisfied customer." - John
- "The first motor worked great my compressor runs like it should" - Rick Hollier
- "Easy to wire as there were both blade and lugs for attaching the power cord. Motors direction is shipped with a CCW direction that can be easily changed to CW direction." - Larry
Restore Reliable Power to Your Air System – Upgrade to the VEVOR 2HP SPL Electric Motor Today!
Don't let a failing air compressor hinder your productivity. Invest in the dependable power and efficiency of the VEVOR 2HP SPL Electric Motor. Order now and get your air system back to optimal performance! Contact us at sales@tendsupplies.com for any inquiries or bulk order requests.
