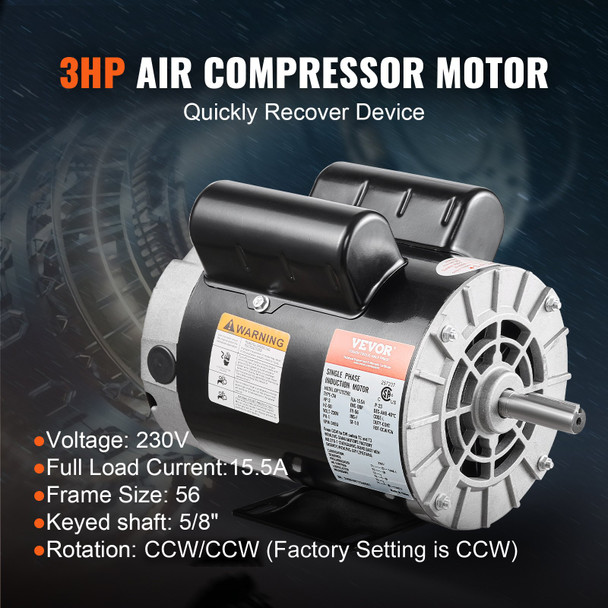

VEVOR 3HP Air Compressor Motor - 230V, 15.5A, 3450RPM, 56 Frame, Reversible CW/CCW - High-Performance Replacement Motor for Industrial & Commercial Air Compressors

Restore Peak Performance to Your Air Compressor with the Reliable VEVOR 3HP Electric Motor – Engineered for Efficiency and Durability

Is your air compressor underperforming or has its motor failed? The VEVOR 3HP Air Compressor Electric Motor offers a robust and efficient solution to revitalize your air system. Designed for both industrial and commercial applications, this high-speed motor provides the necessary power and reliability to keep your pneumatic tools and equipment running smoothly. Built with quality steel and featuring a reversible design for versatile installation, this motor is a dependable choice for a wide range of air compressor units.

Experience the Power and Efficiency of a 3HP Electric Motor:

The VEVOR 3HP Air Compressor Motor is engineered to deliver consistent and efficient performance. With a 3HP output and a high rotational speed of 3450 RPM, this single-phase motor ensures rapid air compression, allowing your air tools to operate effectively. Drawing 15.5 Amps at 230V and featuring a 1.0 Service Factor (SF), this motor is designed to handle its rated load reliably, providing the power you need for various tasks in your workshop or facility.

Built for Long-Lasting Reliability in Demanding Environments:

Constructed from high-quality steel, the VEVOR 3HP electric motor is built to withstand the demands of regular use. The Open Drip-proof (ODP) enclosure makes it suitable for clean and dry indoor environments, protecting the motor's internal components and contributing to a longer lifespan. The sturdy steel frame adds to the motor's overall durability, ensuring consistent performance over time.

Flexible Installation with Dual Rotation Capability:

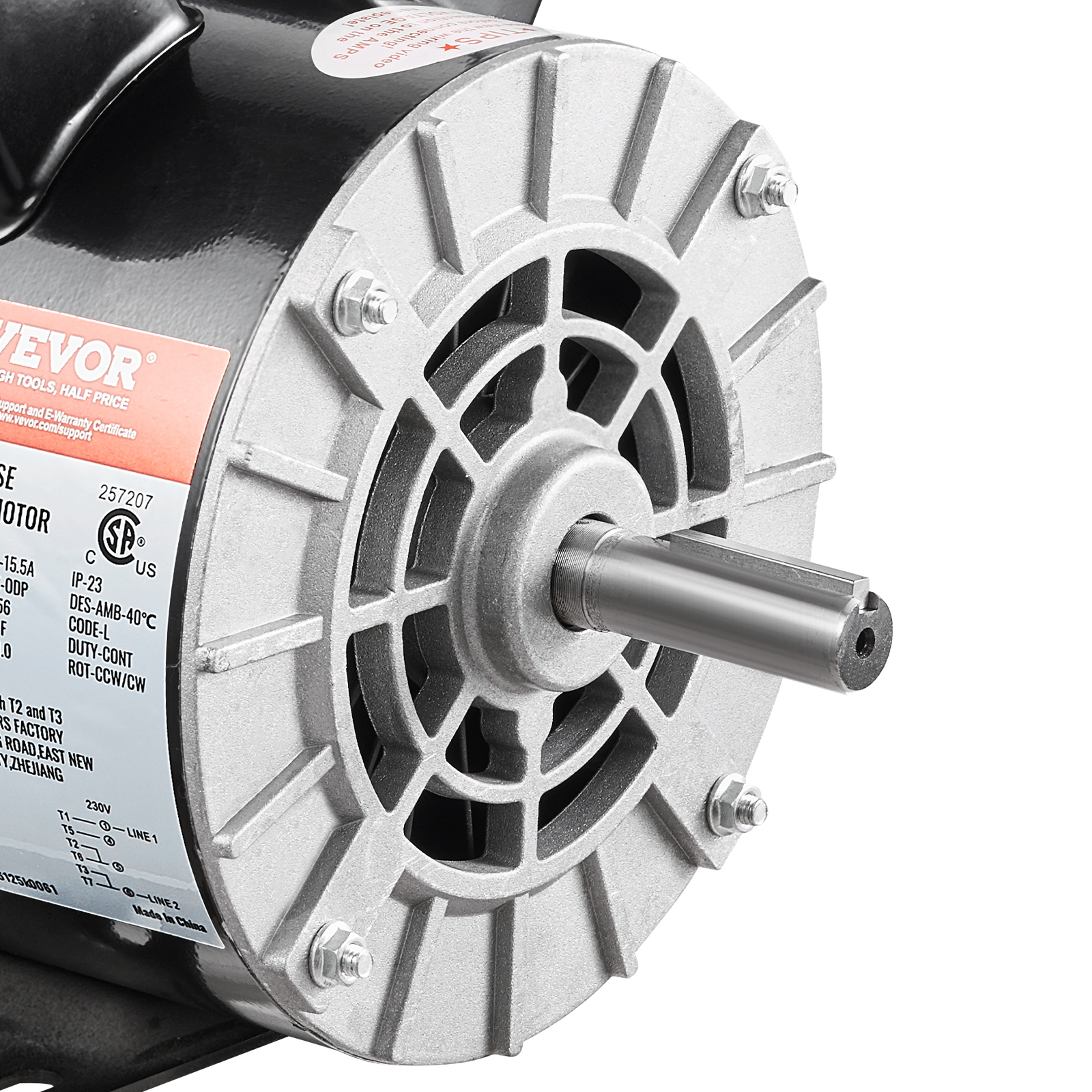

The VEVOR 3HP air compressor motor offers the convenience of dual rotation direction, supporting both Clockwise (CW) and Counter-Clockwise (CCW) operation. This feature simplifies the wiring process during installation, providing compatibility with a wide range of air compressor models. The motor features a standard 56 frame, a common mounting standard, along with a dependable 5/8" keyed shaft with a length of 1.88" and a 0.188" keyway size, ensuring a secure connection to your compressor pump. The efficient cooling system, featuring a large fan, helps to dissipate heat effectively, preventing overheating during operation.

Key Features:

• Powerful 3HP Electric Motor: Provides reliable power for various air compressor applications

• High-Speed 3450 RPM Operation: Ensures efficient air compression and tool operation

• Durable Steel Construction: Offers robust protection and extends the motor's lifespan

• Reversible CW/CCW Rotation: Simplifies installation and ensures compatibility

• Standard 56 Frame: Compatible with a wide range of air compressor units.
• Dependable 5/8" Keyed Shaft: Ensures a secure connection to the compressor pump.
• Efficient Cooling System: Prevents overheating for consistent performance

• Open Drip-proof (ODP) Enclosure: Ideal for clean and dry indoor environments.

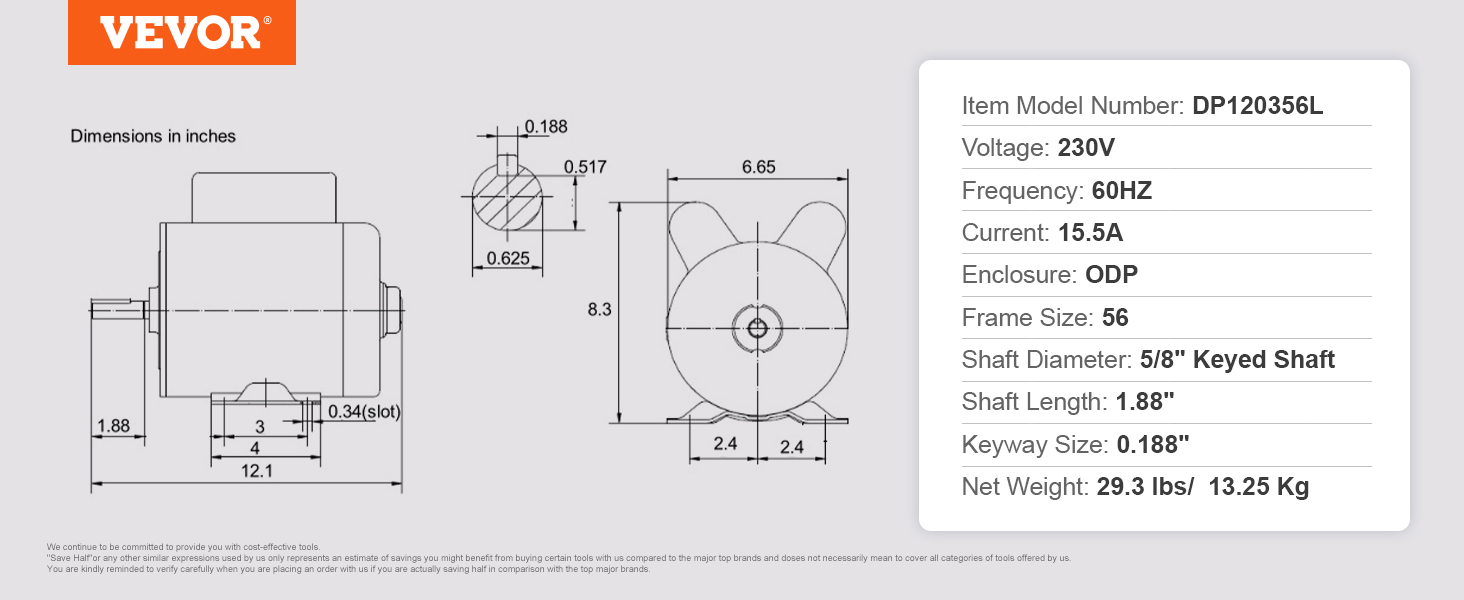

Technical Specifications:

• Horsepower: 3 HP
• Phase: Single Phase
• Voltage: 230V
• Amperage (Full Load): 15.5A
• Speed: 3450 RPM
• Frame: 56 Fram

• Shaft Diameter: 5/8

• Shaft Type: Keyed
• Shaft Length: 1.88

• Keyway Size: 0.188

• Frequency: 60Hz
• Service Factor: 1.0
• Enclosure: Open Drip-proof (ODP)
• Weight: (Provide specific weight if available)

Ideal Applications:

• Replacement motor for 3HP single-stage air compressors.
• Powering smaller industrial air tools and equipment.
• Suitable for commercial workshops and garages.

Frequently Asked Questions (FAQ):

1. What voltage is required to run this 3HP motor?

   • This VEVOR air compressor motor is designed to operate on a 230V single-phase power supply.
     What size circuit breaker should I use with this motor?
     • The manufacturer recommends using a 40-amp circuit breaker for safe and reliable operation of this 3HP motor.

2. Is the rotation direction of the motor reversible?

   • Yes, this motor features dual rotation capability (CW/CCW), which can be easily changed during wiring to match your air compressor's requirements. The factory setting is Counter-Clockwise (CCW).


3. Is this motor suitable for outdoor use?

   • This motor has an Open Drip-proof (ODP) enclosure and is recommended for use in clean and dry indoor environments to ensure optimal performance and longevity.


4. What are the dimensions of the motor shaft?

   • The motor features a 5/8" diameter keyed shaft with a length of 1.88" and a keyway size of 0.188", ensuring a secure connection to your air compressor pump.


5. What is the full load amperage (FLA) of this motor?

   • The full load amperage (FLA) for this 3HP motor at 230V is 15.5 Amps. Ensure your wiring is appropriately sized for this current draw.


6. What is the warranty on the VEVOR 3HP Air Compressor Motor?

   • (Provide specific warranty information if available, e.g., "This VEVOR air compressor motor is backed by a [duration] warranty against manufacturing defects.")

Restore Reliable Power to Your Air System – Upgrade to the VEVOR 3HP Electric Motor Today!

Don't let a failing air compressor slow down your work. Invest in the dependable power and efficiency of the VEVOR 3HP Air Compressor Electric Motor. Order now and get your air system back to optimal performance! Contact us at sales@tendsupplies.com for any inquiries or bulk order requests.
