Power Your Industrial Operations with the VEVOR 7.5HP Air Compressor Motor – The Heavy-Duty Solution for Unwavering Performance and Reliability
When your industrial or commercial air compressor demands robust power and consistent operation, look no further than the VEVOR 7.5HP Air Compressor Motor. Engineered for heavy-duty applications, this high-performance electric motor delivers the substantial horsepower and speed required to keep your pneumatic tools and machinery running at peak efficiency. Built with premium steel and featuring a versatile reversible design, this CSA-certified motor is the ultimate upgrade or replacement for your demanding air compression needs.
The VEVOR 7.5HP Air Compressor Motor is designed to provide the significant power output necessary for the most challenging air compression tasks. Operating at 230V and drawing a full load current of 30 Amps, this single-phase motor achieves a high rotational speed of 3450 RPM, ensuring rapid and efficient air compression. Its 2-Pole design further contributes to its powerful performance, making it an ideal choice for workshops, manufacturing facilities, and other industrial settings where consistent and reliable air power is critical. The 1.0 Service Factor (SFA) underscores its ability to handle its rated load continuously under normal operating conditions.
Built for Enduring Reliability and Safety in Demanding Environments:
Constructed from high-quality steel, the VEVOR 7.5HP electric motor is engineered to withstand the rigors of continuous operation in industrial environments. The Open Drip-proof (ODP) enclosure is designed for use in clean and dry indoor locations, providing essential protection to the motor's internal components while allowing for efficient cooling. Backed by comprehensive CSA certification, this motor guarantees adherence to stringent safety and performance standards, providing you with peace of mind and ensuring compliance with industry regulations. The robust rolled steel shell further enhances the motor's durability, contributing to a long and trouble-free service life.
Simplified Installation and Operation with Dual Rotation Flexibility:

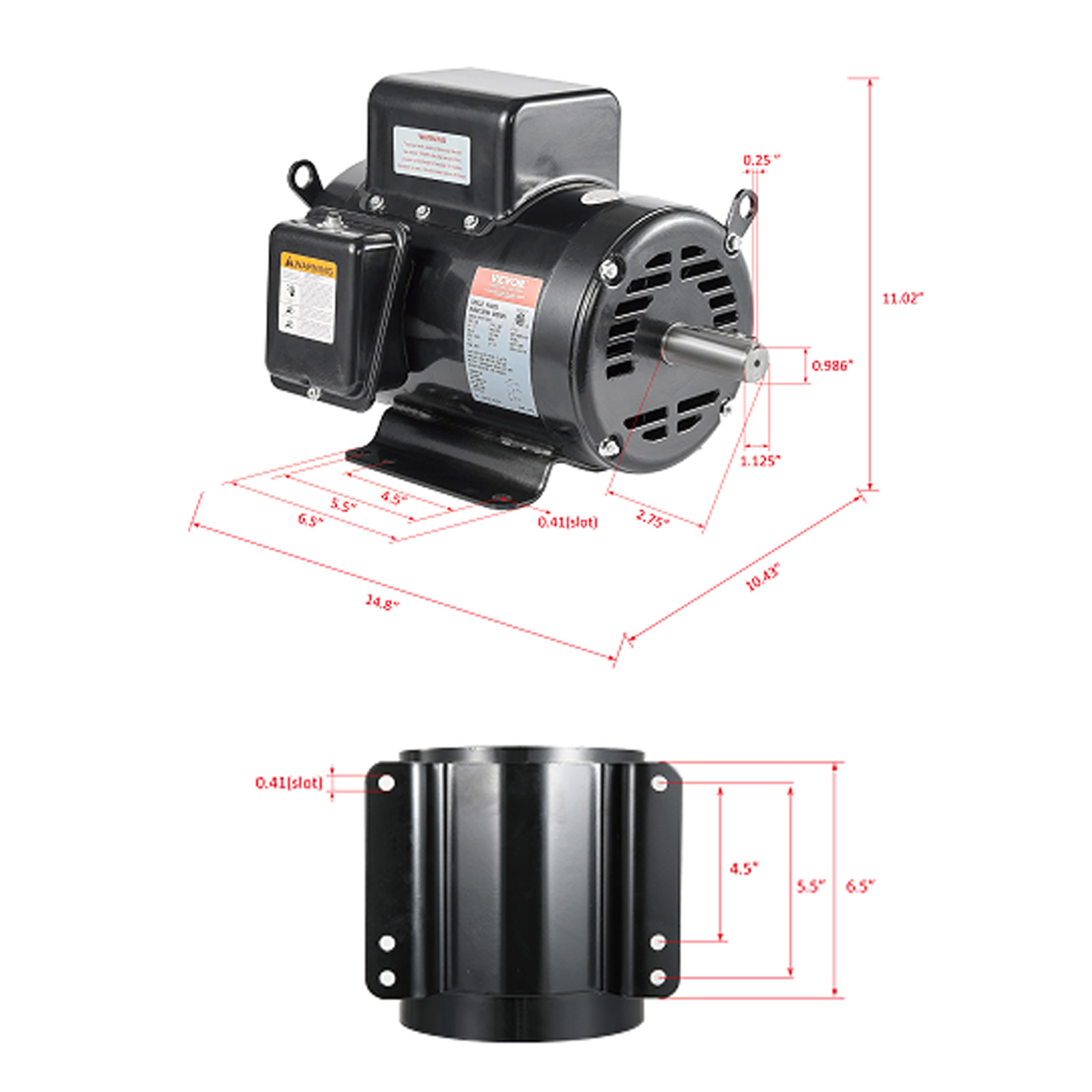

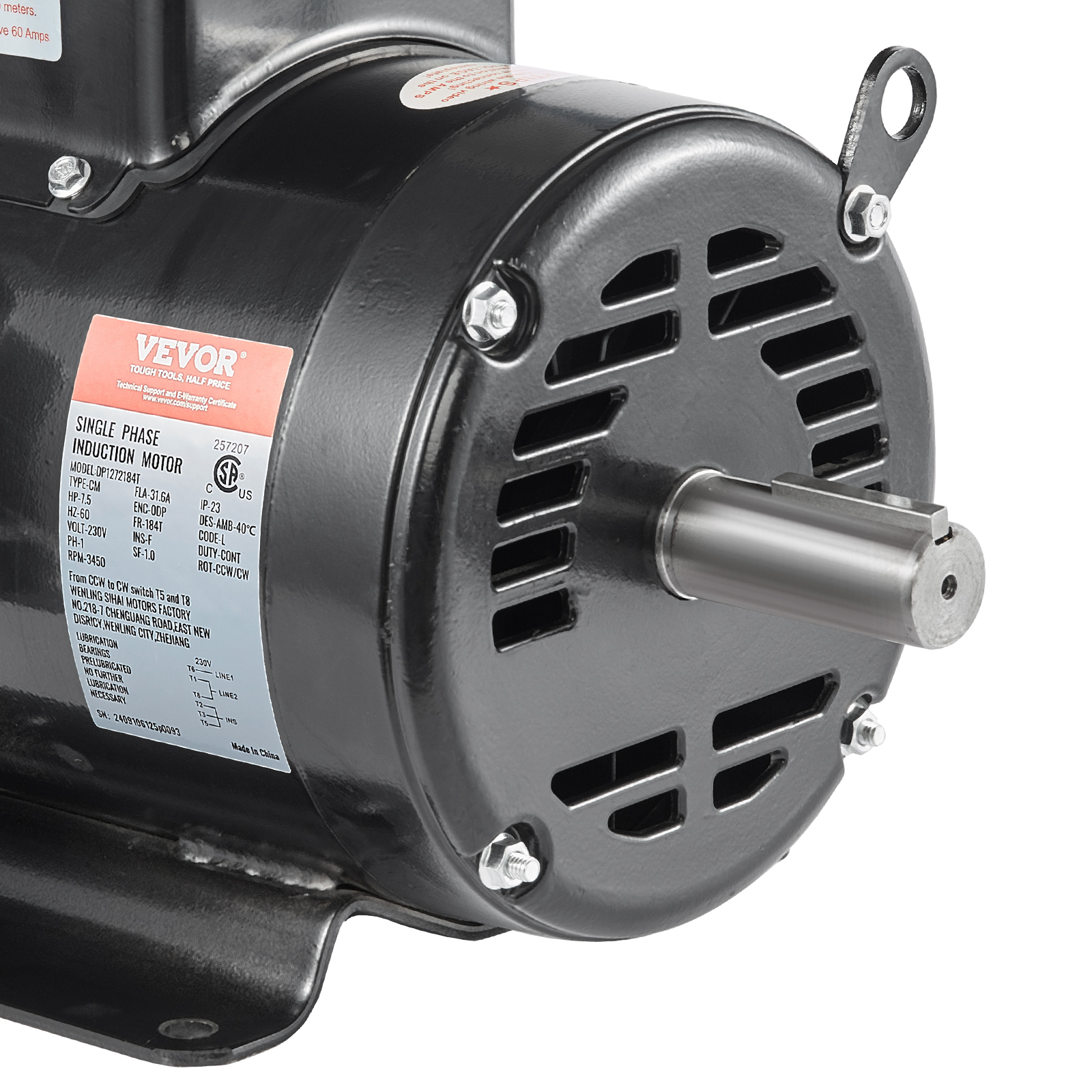

The VEVOR 7.5HP air compressor motor offers the flexibility of reversible rotation, supporting both Clockwise (CW) and Counter-Clockwise (CCW) operation. This dual rotation capability simplifies the wiring process during installation, ensuring compatibility with a wide array of air compressor models and configurations. The motor features a standard 184T frame, a common industrial mounting standard, along with a sturdy 1-1/8" keyed shaft with a length of 2.75", providing a secure and reliable connection to your compressor pump. The efficient cooling system, featuring a large fan, effectively dissipates heat, preventing overheating and ensuring consistent performance even during prolonged use.
Key Features:
- Powerful 7.5HP Electric Motor: Delivers substantial power for heavy-duty air compression demands in industrial and commercial settings.
- High-Speed 3450 RPM Operation: Ensures rapid air inflation and efficient energy utilization for demanding applications.
- Durable Steel Construction with Rolled Steel Shell: Provides exceptional strength and longevity, withstanding the rigors of industrial use.
- Reversible CW/CCW Rotation: Offers versatile installation options and compatibility with various air compressor models.
- Standard 184T Frame: Ensures broad compatibility with a wide range of industrial air compressor units.
- Robust 1-1/8" Keyed Shaft: Provides a secure and reliable connection to the compressor pump for efficient power transfer.
- Efficient Cooling System: Large fan effectively dissipates heat, preventing overheating and ensuring consistent performance.
- CSA Certified for Safety and Compliance: Guarantees adherence to rigorous safety and performance standards for worry-free operation.
- Open Drip-proof (ODP) Enclosure: Suitable for clean and dry indoor industrial environments.
Technical Specifications:
- Horsepower: 7.5 HP
- Phase: Single Phase
- Voltage: 230V
- Amperage (Full Load): 30A
- Poles: 2
- Speed: 3450 RPM
- Frame: 184T
- Shaft Diameter: 1-1/8"
- Shaft Type: Keyed
- Shaft Length: 2.75"
- Rotation: Clockwise/Counter-Clockwise (CW/CCW)
- Service Factor (SFA): 1.0
- Enclosure: Open Drip-proof (ODP)
- Certification: CSA
- Weight: (Provide specific weight if available)
Ideal Applications:
- Replacement motor for heavy-duty single-stage and two-stage air compressors.
- Powering industrial pneumatic tools and machinery in workshops and factories.
- Suitable for commercial applications requiring high air volume and pressure.
- Ideal for demanding environments such as auto repair shops and manufacturing facilities.
Customer Reviews Highlight:
- "The motor I'm writing the review for is the second motor I got from this company... Their customer service was great... I would buy from them again based on the quality of customer service." - Clyde
- "Bolted right up to our compressor. Much easier than I had anticipated. I feel we saved about $200 buying this from VEVOR. Totally pleased!!!" - DON ISTOOK
- "Very good unit delivery was on time very quality motor bought for Air compressor great instructions" - Gary Morische
- "I didn't think that the motor would turn my five horse air compressor but it does it does a great job have it now for 6 months or so and still running smooth and keep it up with everything" - eddiescustom
Frequently Asked Questions (FAQ):
-
What voltage is this motor designed for?
- This VEVOR air compressor motor is designed for operation at 230V single phase. Please ensure your power supply matches this requirement.
-
What is the frame size of this motor?
- This motor features a standard 184T frame, ensuring compatibility with a wide range of industrial air compressor models.
-
Is this motor suitable for outdoor use?
- This motor has an Open Drip-proof (ODP) enclosure, which is designed for use in clean and dry indoor environments. Outdoor use where it may be exposed to moisture or dust is not recommended.
-
What is the diameter and type of the motor shaft?
- The motor features a robust 1-1/8" diameter keyed shaft with a length of 2.75", providing a secure and reliable connection to your air compressor pump.
-
Is this motor CSA certified?
- Yes, the VEVOR 7.5HP air compressor motor is CSA certified, guaranteeing its safety and compliance with stringent industry standards.
-
What is the full load amperage (FLA) of this motor?
- The full load amperage (FLA) of this 7.5HP motor at 230V is 30 Amps. Ensure your wiring and circuit protection are appropriately sized.
-
What is the rotation direction of this motor, and can it be changed?
- This motor is reversible for both Clockwise (CW) and Counter-Clockwise (CCW) rotation, providing flexibility during installation to match your specific air compressor requiremen
Power Your Productivity – Upgrade to the VEVOR 7.5HP Air Compressor Motor Today!
Don't let a failing motor hinder your operations. Invest in the powerful performance, reliable durability, and certified safety of the VEVOR 7.5HP Air Compressor Motor. Order now and experience the difference a quality industrial-grade motor can make! Contact us at sales@tendsupplies.com for any inquiries or bulk order requests.
