Air Source Treatment: How Filters & Lubricators Extend Tool Life (The Ultimate FRL Guide)

You finally invest in a high-torque, industrial-grade 1-inch pneumatic impact wrench rated to last years. But three months later, it ceased. When you open the housing, the motor is pitted with rust, the vanes are scarred, and the chamber is coated with sludge. You oiled it. You maintained it. The problem wasn’t you. The problem was your air.

Every time your compressor runs, it produces moisture, rust particles, and contaminated air. That “dirty air” silently enters your tools, eating away at seals, bearings, and vanes. Across workshops worldwide, over 70% of premature pneumatic tool failures are caused by improper air source treatment, not manufacturing defects, and not user error.

This costly maintenance headache is precisely why Air Source Treatment: How Filters & Lubricators Extend Tool Life is the most critical yet often overlooked step in any compressed air setup. This article will dismantle the science behind the essential FRL (Filter, Regulator, Lubricator) unit, showing you exactly how these three components can drastically reduce repair costs, improve tool performance, and ensure your investment lasts for years, not just months.

Key Takeaways:

• The FRL Unit is Non-Negotiable Protection: The Filter, Regulator, and Lubricator (FRL) is the single most effective investment for pneumatic tool longevity, directly protecting equipment from the three primary killers: moisture, particulates, and friction.
• Pressure is as Important as Cleanliness: The Regulator’s job is to stabilize output pressure to the manufacturer’s specification (usually 90 PSI / 6.3 Bar). This prevents premature seal failure, over-speeding, and unnecessary motor wear, ensuring consistent torque and safety.
• Lubrication Must Be Constant: While manual drops of oil are better than nothing, only an inline Lubricator provides the continuous, micro-mist of ISO 32 air tool oil required to prevent high-speed friction and corrosion inside the tool's motor assembly.
• Mind the Line for Finishing Work: Never run a lubricated air line to equipment like paint spray guns, plasma cutters, or blow guns. Oil carryover contaminates paint and specialized components; these tools require a separate line with a high-efficiency Coalescing Filter (F+R only).
• Point-of-Use is King: FRL units must be installed as close to the tool as possible (the "point-of-use") to ensure lubrication is active and to regulate pressure precisely. Regular maintenance, particularly draining the filter bowl, is essential to stop captured water from re-entering the air stream.

What is Air Source Treatment (FRL)?

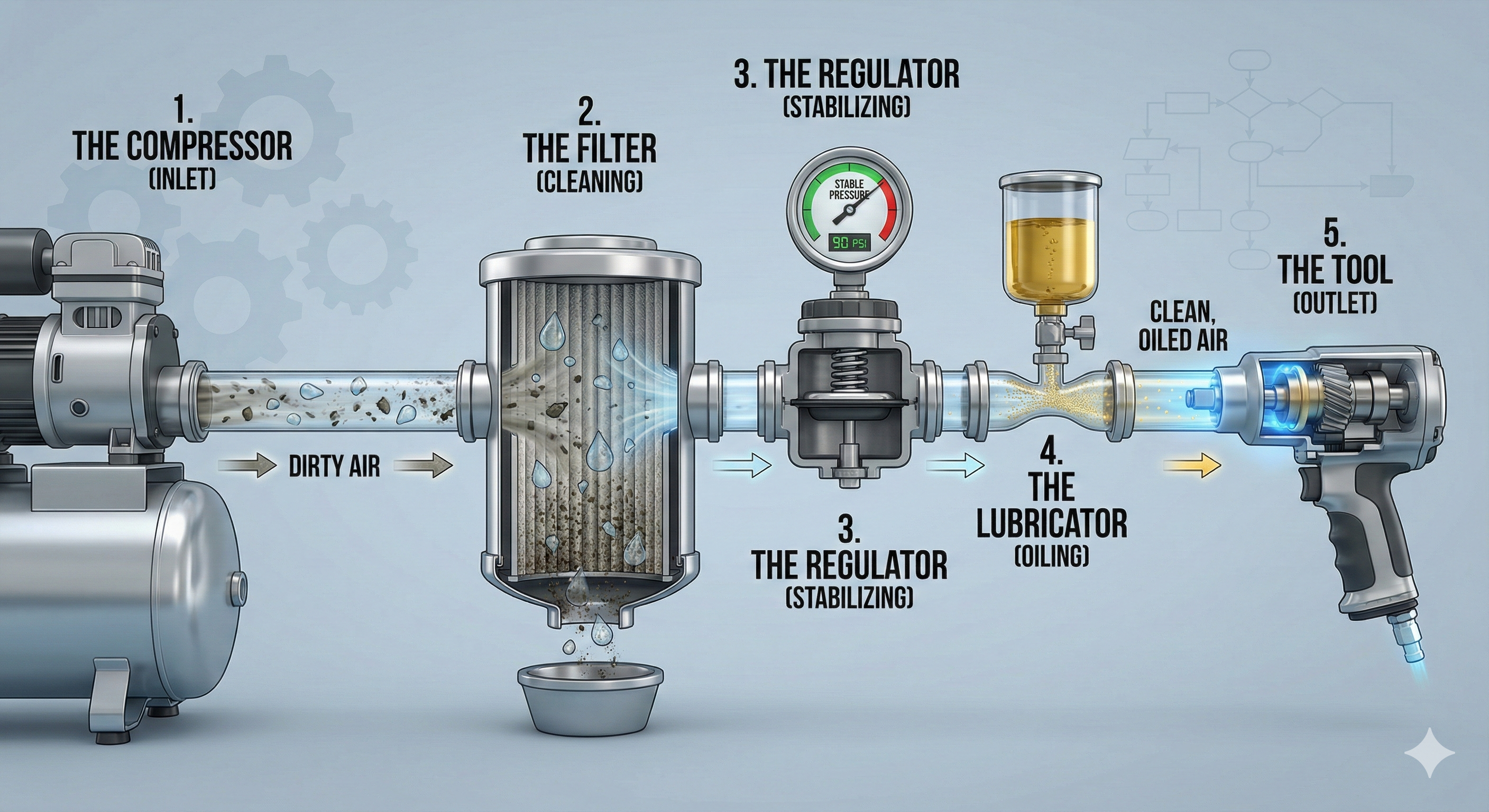

Air Source Treatment is the conditioning process that prepares compressed air before it reaches your pneumatic tools. It is achieved through the FRL Unit, a three-stage system:

1. Filter – removes water, dust, pipe scale, and rust
2. Regulator – stabilizes operating pressure
3. Lubricator – injects a controlled oil mist for internal lubrication

The Three Pillars of Pneumatic Protection

1. The Air Filter - Removing Water, Rust & Grit

The air filter is your first line of defense. Its job is to separate liquid water and solid particles from the air stream.

• How it works: Centrifugal force spins the air, throwing heavy water droplets against the bowl walls, while a sintered element (usually bronze or plastic) traps dust.
• The Critical Spec: Look for Micron Ratings. A standard 40-micron filter is good for general tools (impact wrenches), while a 5-micron filter is necessary for sensitive instruments.
• Global Insight: In high-humidity regions (like Southeast Asia or Coastal US), a standard filter may not be enough. You may need an Air Dryer upstream to prevent massive water buildup.

2. The Regulator — Controlling Pressure, Power & Efficiency

"More power" isn't always better. Running a tool rated for 90 PSI at 120 PSI doesn't make it work faster; it blows out the seals.

• The Function: The regulator reduces the main line pressure (often 150+ PSI) to the specific operating pressure of the tool (usually 90 PSI).
• Energy Savings: By regulating pressure, you stop your compressor from working harder than necessary, lowering electricity costs.

3. The Lubricator — The Lifeblood of Pneumatic Tools

Pneumatic tools have metal vanes spinning at thousands of RPM. Without lubrication, friction creates heat and wear.

• Mist Lubrication: An inline lubricator injects a measured "micro-mist" of oil into the air stream. This coats the internal components of the tool continuously while you work.
• The "Manual Drop" Myth: Putting two drops of oil in the inlet before you start is better than nothing, but that oil is blown out the exhaust within 30 seconds. A lubricator provides constant protection.

Installation Best Practices for Global Shops

Proper placement of your Air Source Treatment units is just as important as the units themselves.

The "Point of Use" Rule

A common mistake is installing one giant FRL unit right at the compressor tank. This is inefficient because:

1. Pressure Drop: Air loses pressure as it travels through long hoses.
2. Condensation: Air cools down in the hose, creating new water after the filter.

The Fix: Install FRL units as close to the tool as possible (usually within 15-20 feet).

Separate Air Lines for Painting vs. Power Tools

CRITICAL WARNING: Never use a lubricator on an air line intended for paint spray guns or plasma cutters.

• The Issue: Oil mist ruins paint jobs (causing "fish eyes") and damages plasma consumables.
• The Setup: Split your air piping.
• Line A (Mechanical): Filter + Regulator + Lubricator (For impacts, drills, sanders).
• Line B (Finishing): Coalescing Filter + Regulator + NO Lubricator (For spray guns).

Troubleshooting Your Air Treatment System

Even the best systems need maintenance. Here is how to diagnose common FRL issues.

Frequently Asked Questions (FAQs)

Can I use motor oil in my air lubricator?

Answer: No. Motor oil (like 10W-30) is too thick and contains detergents that can gum up the vanes of pneumatic tools and eat away at plastic filter bowls. Always use specific pneumatic tool oil or non-detergent oil.

How do I choose the right size FRL?

Answer: You must match the CFM (Cubic Feet per Minute) rating of the FRL to your tool's consumption.

• If your 1-inch impact wrench needs 40 CFM, a tiny 1/4" FRL unit rated for 15 CFM will "choke" the tool, causing a massive loss of torque.

Do modern composite tools still need oil?

Answer: Yes. While the body of modern tools is often composite plastic to save weight, the internal motor assembly is still precision-machined metal that requires constant lubrication to prevent seizing.

How do I correctly size an FRL unit for my air tools?

Answer: FRL units must be sized based on the CFM (Cubic Feet per Minute) or l/s (Liters per Second) flow rate required by your most demanding tool, not just the pipe size (e.g., 1/2-inch port). Structured Requirement:

• The Golden Rule: Always select an FRL unit with a rated flow capacity greater than the tool’s peak flow requirement (often found under "Air Consumption @ Load" in the manual).
• Pressure Drop Warning: Undersized FRLs (e.g., putting a 15 CFM unit on a 40 CFM impact wrench) create a severe pressure drop, which starves the tool of air and instantly compromises performance and efficiency. Never rely on port size alone.

How often should I drain the water from the air filter bowl?

Answer: Drain the filter bowl daily at minimum, ideally before the start of every shift. Structured Maintenance:

• Why Daily? As condensate accumulates, the bowl will eventually overflow, allowing water to be picked up by the air stream and sent directly into your tools, causing instant rust and corrosion.
• Authority Signal: For continuous-use industrial environments, the ROI on an automatic-drain filter is immediate, as it eliminates human error and ensures the bowl is never over-filled.

What is the BEST type of oil to use in the air lubricator?

Answer: You must use specialized, low-viscosity Pneumatic Tool Oil, typically rated as ISO 32 (or SAE 10 non-detergent oil). Structured Warning:

• Do Not Use: Never substitute with standard motor oil (e.g., 10W-30), hydraulic fluid, or general-purpose oils. Motor oil is too thick, lacks the correct anti-rust additives, and contains detergents that can cause internal seals and O-rings to degrade.
• Performance Insight: High-quality synthetic pneumatic oil is more expensive but lasts longer and provides superior anti-friction properties compared to mineral-based oils, offering greater long-term protection for frequently used tools.

Related Articles:

1. Air Compressors: Types, Uses, Selection Tips and Understanding the Power Behind Air Tools
2. How to Choose the Right Size Air Compressor for Your Pneumatic Air Tools
3. 10 Essential Air Compressor Maintenance Tips to Maximize Performance and Prevent Costly Repairs
4. The Ultimate Guide to Pneumatic Air Tools: Everything You Need to Know
5. Innovative Air Compressor Solutions: Boosting Productivity in 2025

Conclusion

Ignoring air preparation is not a cost-saving measure; it’s a direct financial loss. The expense of a proper Filter, Regulator, and Lubricator (FRL) unit is minimal compared to the hundreds or thousands of dollars wasted annually on replacing seized impact wrenches or repairing corrupted internal components.

By investing in clean, regulated, and lubricated air, you are actively preventing pneumatic tool failure. You secure your inventory against abrasive particles and corrosive moisture, ensuring your tools deliver maximum torque and maintain peak efficiency for their full expected lifespan. This strategic maintenance, draining water daily and ensuring a constant air compressor oil contamination defense—provides an undeniable return on investment in FRL systems within the first year alone.

Ultimately, whether you run a massive fabrication plant or a small home garage, mastering air source treatment and maintenance is the secret to extending tool life and guaranteeing reliable performance every time you pull the trigger. Make the smart investment today; your future self, and your bottom line, will thank you.
