The Essential Guide to Air Grinders: Types, Features, and Power Fundamentals

Welcome to your definitive guide to air grinders! If you're looking to enhance your workshop's capabilities with tools that offer robust power, precision, and durability, you've come to the right place. Air grinders, also known as pneumatic grinders, are indispensable in a multitude of industries, from automotive repair and metal fabrication to intricate woodworking and heavy-duty industrial applications.

At Tend Industrial Supplies, we understand that choosing the right tool can be daunting. This article, the first in our two-part series, will demystify air grinders. We'll delve into their core components, the significant benefits they offer over other grinder types, the various models available, essential features to scrutinize, and the critical power requirements that ensure optimal performance. Our goal is to equip you with the foundational knowledge to confidently select an air grinder that perfectly aligns with your needs.

Key Takeaways

• Air grinders offer superior power-to-weight ratios, durability, and cooler operation compared to many electric models, making them ideal for various industrial and DIY tasks.
• Core components include the air inlet, air motor, throttle, collet/spindle, ergonomic handle, exhaust, and safety mechanisms, all working together for efficient operation.
• Air grinders come in diverse types: Straight Die, Angle, Extended, Mini/Pencil, and Heavy-Duty, each optimized for specific applications and working conditions.
• Essential features to consider are ergonomic design (grip, balance), build quality (housing, bearings), noise level (exhaust type, silencing), and speed control (variable speed, governor).
• Critical power metrics include Operating Pressure (typically 90 PSI), Air Consumption (CFM – match this to your compressor's output), Horsepower (HP), and Speed Range (RPM – match to accessory ratings).
• The size and weight of an air grinder significantly affect its maneuverability and operator comfort; choose based on your tasks and work environment.

What Makes Air Grinders a Special Asset in Your Toolkit?

Air grinders are pneumatic tools that harness the power of compressed air to perform a wide array of tasks, including grinding, sanding, polishing, cutting, and surface preparation. Unlike their electric counterparts, air grinders boast several unique advantages:

• Superior Power-to-Weight Ratio: Air grinders typically deliver more power relative to their size and weight. This means you get robust performance from a lighter tool, reducing operator fatigue during extended use.
• Enhanced Durability and Longevity: With fewer moving parts and no electric motor to burn out, air grinders are generally more durable and have a longer operational lifespan, especially in demanding environments. They are less susceptible to damage from overload.
• Increased Safety in Certain Environments: Since they don't use electricity directly at the tool, air grinders are inherently safer in damp conditions or environments where flammable gases or materials might be present (always follow specific safety guidelines for such environments).
• Cooler Operation: Air grinders run cooler than electric grinders because the expanding compressed air helps dissipate heat. This reduces the risk of overheating the tool and the workpiece, which is crucial for heat-sensitive materials.
• Stall Resistance: Air grinders can often be stalled under heavy load without damaging the motor, unlike electric grinders where stalling can lead to motor burnout.

Unpacking the Anatomy: Core Components of Air Grinders

Understanding the basic components of an air grinder can help you appreciate its operation and make informed choices during purchase and maintenance.

• Air Inlet: This is where the compressed air hose connects to the grinder. It typically features a threaded connector (e.g., 1/4" NPT). Maintaining a clean and secure connection here is vital for performance.
• Information Gain: Look for swivel inlets that allow for greater maneuverability of the air hose, reducing kinks and operator strain.
• Motor (Air Vane Motor): The heart of the tool, this motor uses the incoming compressed air to spin vanes or turbines, generating rotational force. The design is simple yet robust.
• Throttle/Speed Control Mechanism: This allows the operator to control the amount of air entering the motor, thereby regulating the speed (RPM - Revolutions Per Minute) of the grinder. This can range from a simple lever to a more precise variable speed trigger.
• Collet or Spindle/Chuck System: This is where the grinding bit, burr, wheel, or other accessory is attached. Die grinders typically use a collet (e.g., 1/4" or 6mm), while angle grinders use a threaded spindle (e.g., 5/8"-11 UNC). The quality of this component is crucial for secure accessory holding and operator safety.
• Ergonomic Grip Handle: Modern air grinders feature handles designed for comfort and control. Materials like rubber or composite help absorb vibration and provide a secure grip.
• Exhaust Port: This directs the expended air away from the operator and the workpiece. Rear exhaust systems are often preferred as they direct air away from the work area, keeping it cleaner. Some models have adjustable exhausts.
• Safety Trigger/Lock-Off Mechanism: Prevents accidental starting of the tool, a critical safety feature. This might be a lock-off lever that needs to be engaged before the main throttle can be activated.
• Housing: The body of the grinder, typically made from aluminum, steel, or composite materials for durability and light weight.

A View of an Air Grinder highlighting its Core Components

The Spectrum of Air Grinders: Finding Your Match

Air grinders are not a one-size-fits-all tool. They come in several distinct types, each tailored for specific applications and operational conditions.

1. Straight Air Die Grinders:

• Description: Characterized by their straight, pencil-like, or slightly bulkier cylindrical design, allowing the accessory to extend directly from the tool's body.
• Typical RPM: High speed, often 20,000 - 25,000 RPM or even higher.
• Common Applications: Precision work, deburring, polishing, porting cylinder heads, cleaning castings, grinding in tight or recessed areas. Ideal for use with carbide burrs, mounted points, and sanding drums.
• Pros: Excellent for detailed tasks, good maneuverability in confined spaces.
• Cons: Not ideal for heavy material removal over large flat surfaces.
• Tend Supplies Recommendation: Check out our range of FPXAIR Straight Die Grinders for exceptional control.

2. Angle Air Grinders (Right-Angle Die Grinders & Larger Angle Grinders):

• Description: Feature a gear head that orients the grinding accessory at a 90-degree angle to the tool body. This design is versatile for various grinding and cutting tasks.
• Typical RPM: Varies widely based on size. Smaller right-angle die grinders might run at 15,000-20,000 RPM, while larger angle grinders (for 4" to 9" discs) operate at lower speeds, typically 7,000 - 12,000 RPM, for safety and compatibility with larger discs.
• Common Applications: Weld grinding, surface preparation, cutting metal stock, smoothing, rust removal, and sharpening.
• Pros: Versatile for both material removal and finishing, good for working on flat or contoured surfaces, comfortable for applying pressure.
• Cons: Can be bulkier than straight die grinders, requiring more clearance.
• Tend Supplies Recommendation: Explore our Aircat Angle Grinders for robust performance in fabrication.

3. Extended Air Die Grinders:

• Description: Essentially straight die grinders with an extended shaft or nose piece. This allows them to reach deeper into cavities, channels, or around obstructions.
• Typical RPM: Similar to straight die grinders, 20,000 - 25,000 RPM.
• Common Applications: Automotive work (e.g., reaching into engine bays), mold making, intricate fabrication jobs where standard length tools cannot access the work area.
• Pros: Exceptional reach for inaccessible areas.
• Cons: The extended shaft can sometimes lead to more vibration or flex if not used carefully.
• Information Gain: When using extended grinders, apply less lateral pressure to avoid damaging the spindle or bearings.

4. Mini Air Grinders / Pencil Grinders:

• Description: Extremely compact and lightweight, often resembling a thick pencil. Designed for highly detailed and delicate work.
• Typical RPM: Can be very high, sometimes exceeding 50,000 RPM for very fine work.
• Common Applications: Jewelry making, model building, fine engraving, deburring tiny parts, and intricate wood carving. Usually use 1/8" or 3mm shank accessories.
• Pros: Ultimate precision and control for delicate tasks, minimal fatigue.
• Cons: Very low material removal rate, suited only for light-duty work.

5. Heavy-Duty Air Grinders:

• Description: These are built for the toughest industrial applications, featuring robust construction, powerful motors (often higher HP), and components designed for continuous operation. This category can include large angle grinders, vertical grinders, and specialized inline grinders.
• Typical RPM: Varies by specific type and disc size (e.g., 6,000-9,000 RPM for larger discs).
• Common Applications: Foundry work (removing risers, gates), shipbuilding, heavy equipment manufacturing, pipeline work, and any scenario requiring substantial material removal.
• Pros: Maximum power and durability for aggressive grinding.
• Cons: Heavier, require more powerful air compressors, can be more fatiguing for prolonged use without breaks or ergonomic aids.

Comparison Table: Air Grinder Types

Essential Features to Scrutinize Before You Buy

Choosing the right air grinder involves more than just picking a type. Several key features will significantly impact its performance, usability, and longevity.

• Ergonomic Design and Comfort:


• Grip: Look for comfortable, non-slip grips (rubberized or composite) that reduce vibration and provide secure handling.
• Weight and Balance: A well-balanced tool feels lighter and is easier to control, reducing operator fatigue. Consider the tool's weight in relation to your typical usage duration.
• Trigger Design: Paddle switches, lever throttles, or trigger throttles each offer different ergonomics. Try to get a feel for what's most comfortable and offers the best control for your applications. Some prefer paddle switches for easy shut-off.
• Information Gain: Prolonged use of tools with poor ergonomics can lead to Repetitive Strain Injuries (RSIs). Prioritizing ergonomic design is an investment in your long-term health and productivity.
• Build Quality and Durability:


• Housing Material: Aircraft-grade aluminum offers a good balance of strength and light weight. Composite housings can reduce weight further and dampen vibration, but ensure they are from reputable brands for durability. Steel housings are common in heavy-duty tools for maximum toughness.
• Bearings: High-quality, sealed ball bearings protect against dust and debris, ensuring smoother operation and longer motor life.
• Internal Components: Heat-treated gears and motor components contribute to the tool's ability to withstand tough conditions.
• Tend Supplies Insight: We stock brands known for their robust build quality, ensuring your investment lasts.
• Noise Level and Operation:


• Air tools can be noisy. While a silencer or muffler is often built into the exhaust, noise levels can still exceed 85 decibels (dB), requiring hearing protection.
• Rear Exhaust: Generally preferred as it directs air (and potentially oil mist and fine debris) away from the operator and the immediate work surface. Some models feature adjustable exhaust ports.
• Silencing Technology: Some premium brands incorporate patented silencing technology to reduce noise output without sacrificing power. AIRCAT is well-known for this.
• Speed Control and Precision:


• Variable Speed: Many air grinders offer variable speed control, usually via a responsive throttle or a dedicated regulator. This allows you to match the tool's speed to the accessory being used and the material being worked on.
• Governor: Some high-quality air grinders include a speed governor that helps maintain a consistent RPM under load, which is crucial for uniform finishes and preventing the tool from over-speeding.
• Information Gain: Different materials and accessories have optimal speed ranges. For example, polishing typically requires lower speeds, while cutting with small-diameter discs often uses higher speeds. Always check accessory speed ratings.

Air Grinder Power: Understanding the Metrics That Matter

To get the best out of your air grinder and ensure it works efficiently with your air supply, you need to understand these key performance and requirement metrics:

• Operating Pressure (PSI - Pounds per Square Inch):


• This is the air pressure required at the tool inlet for it to operate correctly. Most air grinders are designed to operate at 90 PSI (approximately 6.2 bar).
• Operating below this pressure will result in reduced power and performance. Exceeding the recommended pressure can damage the tool and is a safety hazard.
• Key Tip: Always use an air regulator at your compressor or near the tool to ensure consistent 90 PSI delivery.
• Air Consumption (CFM - Cubic Feet per Minute or l/min - Liters per Minute):


• This measures the volume of air the grinder requires to run continuously and effectively. CFM ratings are usually given at the standard 90 PSI.
• Light-duty tools (mini/die grinders): 3-5 CFM
• Medium-duty tools (standard die/angle grinders): 4-7 CFM
• Heavy-duty tools (large angle/industrial grinders): 7+ CFM, some much higher.
• Crucial Consideration: Your air compressor's CFM output capacity (at 90 PSI) must exceed the CFM requirement of your air grinder (and any other air tools running simultaneously). If your compressor can't keep up, the grinder will be starved for air and won't perform adequately. It's generally recommended to have a compressor that supplies at least 1.5 times the tool's average CFM requirement for consistent performance, especially for prolonged use.
• Horsepower (HP):


• This indicates the power output of the air grinder's motor. Higher HP generally means the tool can remove material faster and is less likely to bog down under load.
• Detail work/finishing (e.g., die grinders): 0.3 - 0.7 HP
• General-purpose grinding: 0.5 - 1.5 HP
• Heavy-duty material removal (e.g., larger angle grinders): 1.0 - 3.0 HP or more.
• The stated HP for air tools is often a measure of their power potential. Consistent air supply (CFM & PSI) is key to achieving this power.
• Speed Range (RPM - Revolutions Per Minute):


• This is the rotational speed of the spindle/collet. As mentioned, it varies significantly by grinder type and intended application.
• Typical Range: 7,000 RPM (for large angle grinders) to 25,000+ RPM (for die grinders), with specialized pencil grinders going even higher.
• Safety Note: Never exceed the maximum RPM rating of any accessory (grinding wheel, disc, burr) you attach to the grinder. Using an accessory above its rated speed can cause it to disintegrate, leading to serious injury.

Matching Your Grinder to Your Air Compressor: A Quick Guide

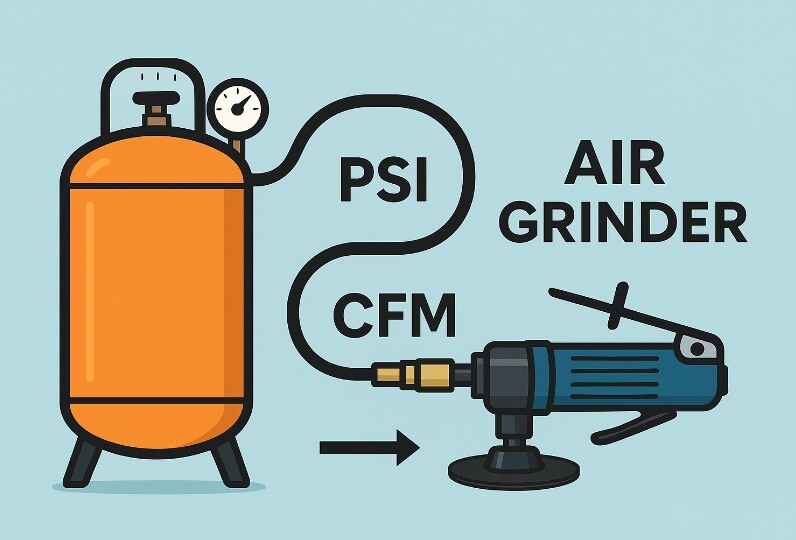

Infographic showing how an Air compressor Connects to an Air Grinder

Size and Weight: Balancing Power with Maneuverability

The physical dimensions and weight of an air grinder are critical factors, especially for tasks requiring precision or prolonged use.

• Compact Design Benefits:


• Most air grinders are inherently lighter than their electric counterparts due to the absence of a heavy electric motor. Professional-grade air die grinders can weigh as little as 1 to 3 pounds.
• This lightness translates to better maneuverability, especially in confined spaces like engine bays, inside pipes, or overhead applications.
• Reduces operator fatigue, allowing for more consistent quality of work over longer periods.
• Weight Distribution:


• Beyond the total weight, how that weight is distributed affects the tool's balance and feel.
• Look for models with an even weight distribution or a center of gravity close to the grip. This minimizes hand and wrist strain and enhances control for precision tasks.
• Ergonomic designs often focus on achieving this balance.
• Size Variations for Different Tasks:


• Mini/Pencil Grinders (4-6 inches long): Perfect for intricate detail work where larger tools simply won't fit or offer the necessary finesse.
• Standard Size Die Grinders (7-9 inches long): Ideal for general-purpose deburring, polishing, and grinding in moderately accessible areas.
• Angle Grinders (vary by disc size, 4" to 9" models): Larger and heavier, designed for more substantial material removal or cutting. Their size provides leverage and stability.
• Extended Reach Grinders (can be 10+ inches long): The extra length is for specific access challenges, not general use.

Choosing the right size and weight involves a trade-off. While a smaller, lighter tool is more maneuverable, a larger, heavier tool might offer more power or be necessary for larger accessories. Always match the tool's physical characteristics to the job at hand and your own comfort.

Frequently Asked Questions (FAQs)

What is an air grinder?

An air grinder, also known as a pneumatic grinder, is a power tool that uses compressed air to spin an abrasive attachment at high speeds. They're commonly used for grinding, cutting, sanding, honing, and polishing various materials, especially in metalworking, fabrication, and automotive repair.

How do air grinders differ from electric grinders?

The main difference lies in their power source. Air grinders run on compressed air (pneumatic power), requiring an air compressor, while electric grinders run on electricity (corded or battery-powered). Air grinders are often lighter, more compact, and can be safer in wet environments as they don't have electrical components that can short. They also tend to have a higher power-to-weight ratio.

What are the different types of air grinders?

The most common types include:

• Die Grinders: Smaller, straight-bodied tools ideal for precision work, deburring, polishing, and reaching tight spaces.

• Angle Grinders (Pneumatic): Similar in function to electric angle grinders, with a head angled at 90 degrees, used for heavier cutting, grinding, and surface preparation.

• Vertical Grinders: Designed for heavy-duty grinding and sanding on large, flat surfaces.

What kind of air compressor do I need for an air grinder?

Air grinders are CFM (Cubic Feet per Minute) hungry tools. You'll need a compressor that can supply sufficient CFM at the required PSI (Pounds per Square Inch) to allow the grinder to operate continuously without losing power. Always check the grinder's specifications for its CFM and PSI requirements and choose a compressor that exceeds these slightly.

What are common applications for air grinders?

Air grinders are incredibly versatile and are used for:

• Metal Fabrication: Grinding welds, cutting metal, shaping, and deburring.

• Automotive Repair: Porting, polishing, removing rust, and cleaning engine components.

• Woodworking: Shaping, carving, and sanding.

• Finishing Work: Deburring edges, polishing surfaces, and intricate detailing.

• Mold & Die Work: Precision grinding and finishing of molds and dies.

What safety precautions should I take when using an air grinder?

Safety is paramount with any power tool. Always:

• Wear appropriate Personal Protective Equipment (PPE), including safety glasses or a face shield, hearing protection, gloves, and a dust mask.

• Ensure the tool is disconnected from the air supply when changing attachments or performing maintenance.

• Use the correct abrasive attachment for the task and material.

• Inspect the tool and attachments for damage before each use.

• Maintain a stable stance and keep a firm grip on the tool.

• Never exceed the maximum RPM rating of the abrasive attachment.

How do I maintain an air grinder?

Regular maintenance ensures longevity and performance:

• Lubricate regularly with pneumatic tool oil (daily or per manufacturer's instructions).

• Drain your air compressor tank daily to prevent water from entering the air lines.

• Use an air filter/regulator/lubricator (FRL) unit to ensure clean, dry, and lubricated air.

• Check hoses and fittings for leaks or damage.

• Inspect and replace worn attachments promptly.
