Description
Tend Industrial Supplies is your one source for SHINANO 1/4" SQ DRIVE REAR EXHAUST PNEUMATIC (AIR) RATCHET WRENCH SI-1217EX. Shinano Pnuematics Japan manufactures air tools for a variety of applications from automotive service to industrial production. Standard features include composite or steel housings, built in air pressure regulators, and pin or through type socket retainers.
If you need help selecting the best Impact Wrench for your bolting application please contact us and we'll be glad to support you and help you choose.
- MANUFACTURED IN JAPAN BY SHINANO INC, - these tools and accessories offer uncompromising industrial quality at reasonable prices.
- SOME SHINANO MODELS HAVE BEEN IN CONTINUOUS PRODUCTION - since the Brand was first introduced into Australia in 1978.
- LARGE INVENTORIES OF SPARE PARTS - are held in stock and these include some parts for discontinued models.
- SHINANO AIR TOOLS ARE YOUR CHOICE - if you need tools that will give long reliable service in industrial production situations.

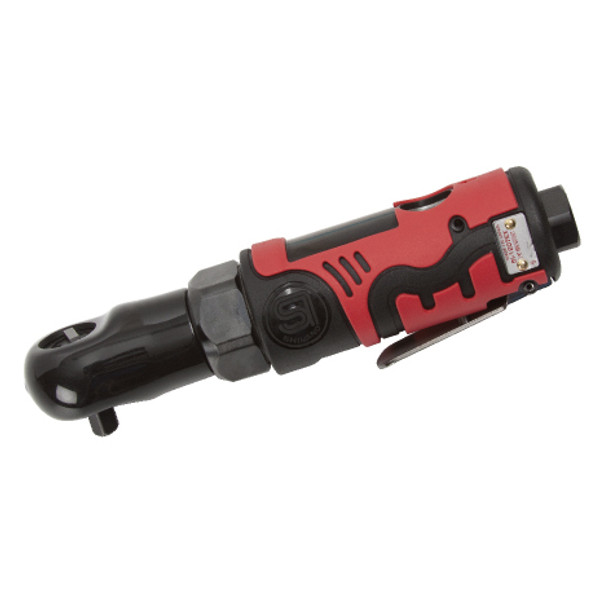

SPECIFICATION THIS AIR RATCHET WRENCH
|
Shank Size in./(mm) |
1/4/(6.35) |
|---|---|
|
Maximum Torque Nm/(ft-lb) |
43/(31) |
|
Working Torque Range Nm/(ft-lb) |
0-36/(0-26) |
|
Bolt Cap mm/(in.) |
6.35/(1/4) |
|
Free Speed r.p.m. |
300 |
|
Weight kg/(lb) |
0.54/(1.18) |
|
Noise Level *dBA/(power) |
84/(95) |
|
Vibration a/k *m/s2 |
4.0/0.9 |
|
Avg.Air Consumption CFM/(L/S) |
1.6/(0.8) |
|
Air Inlet Size in. |
1/4 |
DESCRIPTION
● Same body size as SI-1200B.
● Double mold composite body cover for added vibration and cold temperature protection.
● 360° air inlet swivel.

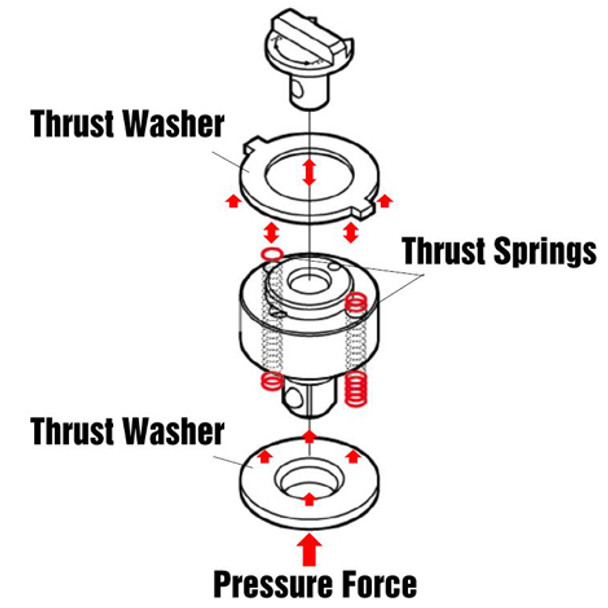

● Double Thrust Mechanism
Two thrust springs and two thrust washers disperse pressurizing force
and increase the lifetime of the ratchet mechanism 30% than before.
*Noise levels according to ISO 15744:2008,ISO 11203:2009*Vibration level according to ISO 28927
