Maxxeon
MAXXEON WorkStar® 1000 Technician's Professional LED Work Light and inspection light
- SKU:
- MXN01000
Description
Tend Industrial Supplies LLC is a distributor of Maxxeon Lighting products a range of innovative products. Our MAXXEON WorkStar® 1000 Technician's Professional LED Work Light and inspection light is a professional, commercial grade, USB rechargeable "slim" LED work light that produces 600/260 lumens, runs for 2/5.5 hours and is competitively priced.
Practical
The Maxxeon LightStik WorkStar® 1000 Technician's Professional LED Work Light is a handheld, cordless, Li-ion rechargeable "slim" light. It features a long, narrow light bar that can fit into hard to reach places. The light bar is a powerful 600 lumen wide beam COB LED, plus there is a handy narrow beam penlight LED on the end of the light bar that can easily illuminate those really hard to reach black holes.
Battery Indicator: Like its big brothers in the LUMENATOR® series, the Technician's Work Light features an innovative battery indicator that works both during charging and while the light is operating. Three green LEDs are arranged in a bar graph format, so the status of the battery is never a mystery.
Charging: The WorkStar® 1000's 18650 Li-ion battery is charged via a micro USB jack, so it can be charged in a vehicle or anywhere there is a USB port. A small wall plug with USB output is included. The battery should last for many years in normal operation.
Performance
Main Light: The 5 W COB LED has 2 brightness settings. The HIGH setting produces 600 lm with a run time of 2 hours, and the LOW setting is 260 lm for 5.5 hours. The LED color is daylight white at about 5800K with CRI>80. The beam ratio is 3:1, which means the diameter of the beam is 3 times the distance from the light to the object or in other words, a very wide beam. Just as important, the beam is consistent over the entire beam diameter, no hot spots, dark spots or rings.
Top Light: The 3 W Cree LED on the end of the light bar produces 120 lm and has a run time of 7 hours. The LED color is daylight white at about 5800K with CRI>65. The beam ratio is 1.5:1, which is a narrow beam. Just like the main beam, this bonus light creates very consistent beam over the entire beam diameter.
Professional
The LightStik's body is made from ABS and has soft rubber coating that provides a secure grip. The 2 main features of the body are the tilting head and the magnetic base. The LightStik head tilts 120 degrees with 5 indented positions, so the 2 lights can be aimed in any direction. The powerful, rubber covered magnetic base works in conjunction with the tilting head and the very wide beam to provide superior hands-free operation. Unlike some of the competition, the base is very wide and stable, so even when the LED work light is not stuck to a ferrous surface, the light won't tip over when the head is tilted. It's only 13 in long and weighs less than a pound. With an IP54 rating it is water resistant to water jets and rain. With an IK07 impact test and 6 ft drop test ratings, it is a dependable, professional tool.
For many situations in HVAC and Automotive, the Maxxeon LightStik WorkStar® 1000 is the perfect LED Work Light.
Specifications for MAXXEON WorkStar® 1000 Technician's Professional LED Work Light and inspection light
PARAMETER | PERFORMANCE |
---|---|
LED Brightness (Luminous Flux) | High: 600, Low: 260, Top: 120 lumens |
LED, Color, Power | Main: COB, Daylight White/CRI > 80, 5 W Top: Cree, Daylight White/CRI > 65, 3 W |
Main Beam Ratio | Lens creates an wide floodlight beam - no rings, no shadows, no hot spots. The beam diameter to distance ratio is 3:1, for example, the beam diameter is 6 ft wide when the light is 2 ft from an object. |
Top Beam Ratio | Lens creates an narrow penlight beam - no rings, no shadows, no hot spots. The beam diameter to distance ratio is about 1.5:1, for example, the beam diameter is 3 ft wide when the light is 2 ft from an object. |
Power/Brightness Switch | Sealed power switch controls top penlight and the 2 brightness levels of the main light: TOP-LOW-HIGH-OFF... |
Battery Included | One 18650, 3.7 V, 2.6 Ah Li-ion rechargeable battery |
Run Time | High: 2, Low: 5.5, Top: 7 hours |
Recharge Time | 4 hours |
Battery Life and Charge Indicator | Three green LEDs are arranged in a bar graph format to indicate both the battery life and the charge level |
Charging Input | Micro USB |
USB Power Supply/Charger | Input: 100-220 VAC 50/60 Hz UL-Approved North American power supply with standard "Type A", two prong plug. Output: 5 V, 1.5 A USB jack. |
Tilting Head | Head tilts 120 degrees with 5 indented positions |
Body Material | ABS plastic with soft rubber grip coating |
Magnetic Base | Powerful, rubber coated magnetic base and features a wide base so the light won't tip over when the head is tilted and the surface is non ferrous |
Dimensions | 13.5 x 2.25 x 1.5 inches (34 x 5.5 x 3.8 cm) |
Weight | 12 oz (340 g) |
Temperature | 15º to 105ºF (-10º to +40ºC) |
Ingress Protection | IP54 = limited dust ingress + water resistant to water jets and rain |
Impact Test | IK07 = 2 J |
Drop Test | 6 ft (2 m) |

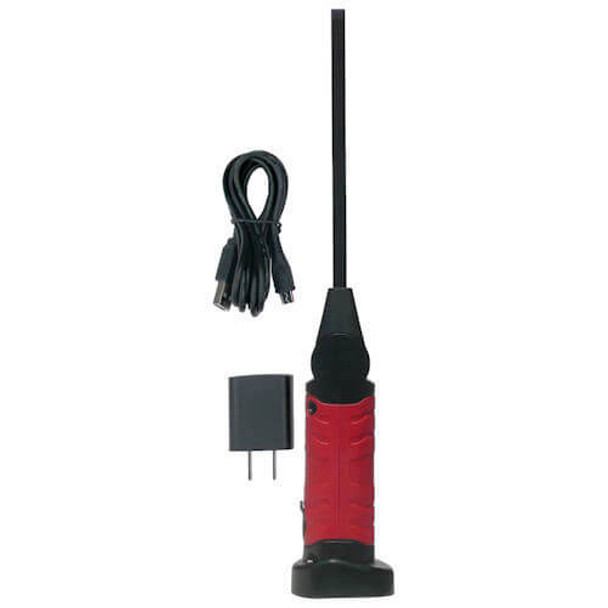

Included | WorkStar® 1000 with rechargeable Li-ion battery, 100-220 VAC power supply, USB to micro USB cable |
Warranty | 1 year against manufacturing defects |
Prop 65 | Complies with California Proposition 65 |
UNSPSC code | 39112009 Portable Shop Light |
Barcode | 629203010007 |
