Shop pneumatic FRL systems for a complete air-treatment point of use. An FRL combines filtration, pressure regulation, and lubrication in one compact assembly—an efficient choice for many air tools, workshop drops, and equipment stations that require an oiled air supply.
Choose by maintenance preference: select a manual-drain unit when the bowl can be checked routinely, or an auto-drain unit for applications where regular manual draining is difficult. Confirm the tool manufacturer permits lubricated air before selecting an FRL with an integrated lubricator.
FRL buying guide and sizing
How to choose an FRL system
- Match the connection: verify inlet and outlet thread size and thread standard at the installation point.
- Allow enough flow: the FRL's rated flow should support the pneumatic tool or tools at their real working demand; an undersized unit can create pressure drop under load.
- Set the correct pressure: size the regulator for the equipment's recommended operating pressure, not the compressor tank's maximum pressure.
- Choose the drain: manual drain suits monitored workstations; auto drain reduces routine bowl-draining steps.
- Confirm lubrication is appropriate: oil may be beneficial for some pneumatic tools but is not appropriate for every air system, especially equipment or processes that require dry, oil-free air.
Current selection

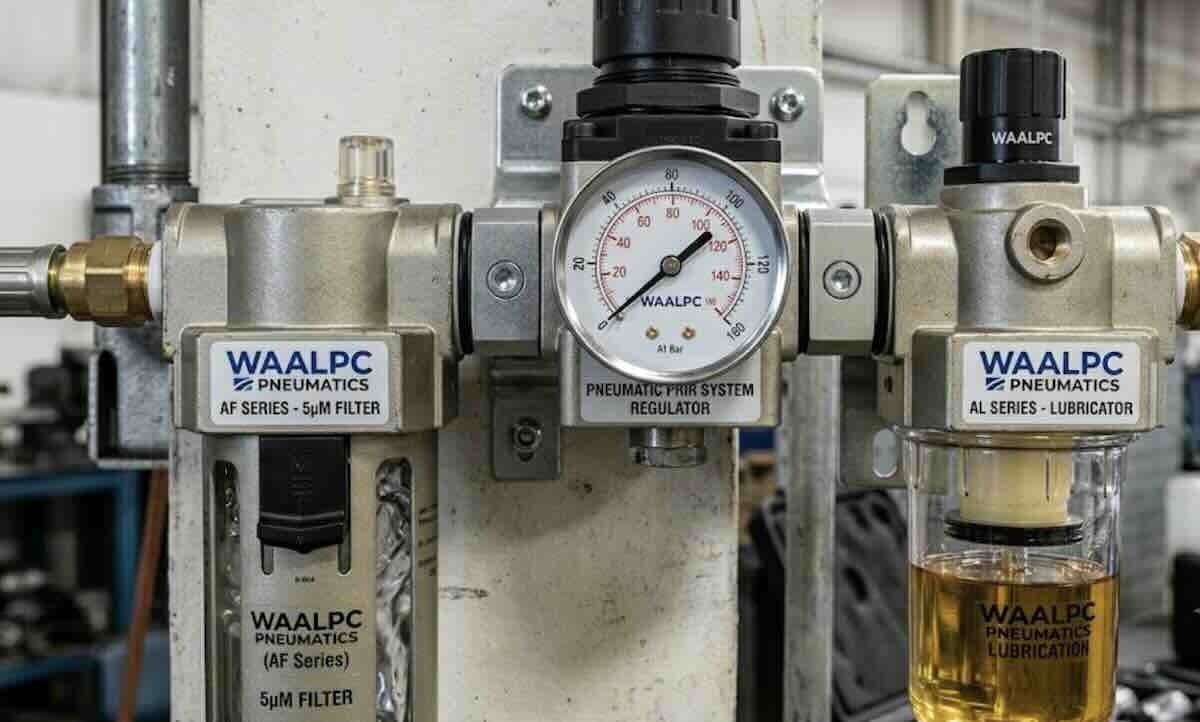

The current range includes compact 1/4 in NPT WAALPC FRL options with 5-micron filtration, manual-drain and auto-drain choices, and an integrated regulator and lubricator. Check the individual product page for its complete specifications before purchase.
FRL system FAQ
What does FRL mean?
FRL means filter, regulator, lubricator—the three common functions used to prepare compressed air at a point of use.
Do all pneumatic tools need a lubricator?
No. Follow the tool manufacturer's lubrication guidance. Some tools benefit from lubricated air; other equipment and processes require air that is dry and oil-free.
What is the difference between manual and auto drain?
A manual-drain bowl is emptied by the operator. An auto-drain design discharges accumulated condensate automatically under its intended operating conditions. Choose based on how the station is monitored and maintained.
Need filtration and pressure control without lubrication? See air regulators and air filters.
