Shinano Pneumatic Tools Japan

Shinano SI-2740 10mm x 330mm Industrial Pneumatic Belt Sander (15,000 RPM | Made in Japan)

24 reviews(24) Write a Review
Ask Questions

Shinano SI-2740 10mm x 330mm Industrial Pneumatic Belt Sander (15,000 RPM | Made in Japan)

$170.00
  • SKU: SI-2740
In Stock & Ready To Ship!
Current Stock:Only left:

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

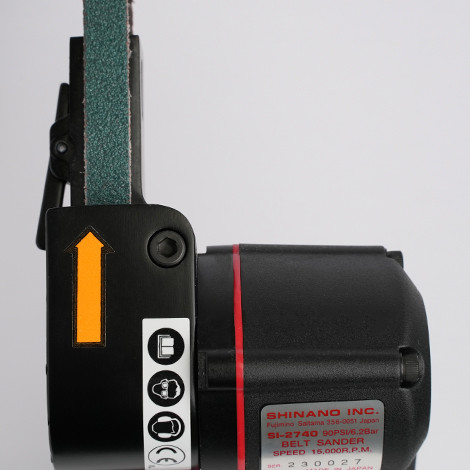

Shinano Air Belt Sander 10 x 330mm SI-2740

"For precision shaping, deburring, and seamless weld blending in narrow openings, nothing matches the Shinano SI-2740. Running at a fast 15,000 RPM and weighing just 1.6 lbs, this Japanese belt sander serves as a natural extension of your hand, shaping metal in spaces other grinders can't even touch."

Comprehensive Data Attributes Sheet

Technical Attribute

Certified Specification Value

Brand

Shinano Pneumatic (Inc. Japan)

Model Number

SI-2740

Product Category

Pneumatic Air Belt Sanders (Detail)

Sanding Belt Size

10mm Width x 330mm Length (3/8" x 13")

Free Sander Speed

15,000 RPM

Power Output Wattage

317 Watts (0.42 HP high-output motor)

Average Air Consumption

3.3 CFM

Max Continuous Air Flow

19.8 CFM (Heavy duty load rating)

Recommended System Pressure

90 PSI (6.2 Bar)

Air Inlet Size

1/4" NPT (Industrial Standard)

Minimum Air Hose ID

3/8" (10mm)

Sound Level (ISO 15744)

85 dBA (Power Level: 96 dBA)

Vibration Level (ISO 28927)

1.0 m/s² (K-factor: 0.6 m/s²)

Net Weight

1.61 lbs (0.73 kg)

Overall Length

10.82 Inches (275mm)

Duty Cycle Rating

Continuous Precision Metal Finishing / Aerospace Prep

⭐ What Makes It Better (Internal Tech & Materials)

  • Hardened Alloy Guide Bar: The guide arm is machined from hardened alloy steel, resisting wear from frictional belt heat.

  • Ergonomic Rubber Hand Sleeve: A molded elastomeric rubber grip insulates operators from operational vibration and cold air transfer.

  • Quick-Change Belt Tensioner: Features a spring-loaded quick-release locking mechanism that allows operators to change belts in seconds.

Industrial Applications & Workflows

  • Precision Aerospace Deburring: Cleaning hard alloy turbine blades and inner structural bracket surfaces after CNC machining.

  • Weld Seam Blending: Removing hard weld seams inside structural corner points on metal boxes.

  • Woodwork & Plastics Profile Finishing: Deburring rough-cut acrylic pieces and detail-sanding intricate wood shapes.

In the Box & Support Specifications

  • Standard Items Included: Shinano SI-2740 Belt Sander, 1x #80 Grit 10x330mm Sanding Belt, 1x #120 Grit Sanding Belt, Hex Tensioning Wrench, 1/4" NPT Male Fitting, Operation Manual, and certified parts list.

  • Authorized Dealer Status: 100% Genuine Shinano tool. Sold as an Authorized USA Distributor with original factory parts availability and support.

  • Warranty: Full 1-Year Manufacturer Factory Warranty.

Contact Us: For further details and availability within the storefront in your location.
