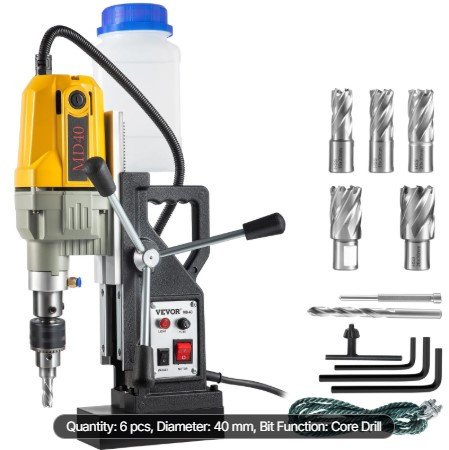

VEVOR Magnetic Drill, 1100W, 1.57-Inch Boring Diameter
The VEVOR Magnetic Drill 1100W is a powerful, portable drilling machine designed for precision hole-making in steel fabrication, metalworking, construction, and industrial maintenance. Featuring a 1100W motor, a maximum coring diameter of 1.57 inches (40 mm), and a strong 12,000N electromagnetic base, this magnetic drill provides stable positioning and efficient drilling performance for demanding metalworking tasks.
Key Features and Benefits
Powerful 1100W Motor: Delivers the power required for drilling operations in compatible metal materials, making it suitable for fabrication workshops and industrial applications.
40 mm Maximum Coring Capacity: Supports core drilling up to 1.57 inches (40 mm) in diameter, allowing users to create larger, precise holes in suitable steel workpieces.
Strong 12,000N Magnetic Base: The electromagnetic base securely anchors the drill to compatible ferrous surfaces when properly positioned, helping improve stability and drilling accuracy.
580 RPM Maximum Speed: Provides a rotational speed suited to the machine's intended metal-drilling applications.
Integrated Cooling System: The coolant tank and delivery system help manage heat during drilling, supporting smoother operation and extending cutting-tool life when used correctly.
Versatile Drill Bit Set: Supplied with six core drill bits and one twist drill, offering multiple drilling sizes for common workshop requirements.
Portable and Practical Design: Weighing approximately 11 kg, the machine features an ergonomic handle and adjustable feed handles for convenient positioning and controlled operation.
Applications
The VEVOR Magnetic Drill is suitable for:
-
Steel fabrication and structural metalwork
-
Construction and engineering projects
-
Bridge and shipbuilding work
-
Industrial equipment installation
-
Metalworking and maintenance workshops
-
Drilling holes in compatible steel plates and structural components
Technical Specifications
-
Brand: VEVOR
-
Model: JBLJC6PCS110VSLJ1V1
-
Product Type: Portable Electromagnetic Drill Press
-
Motor Power: 1100W
-
Rated Voltage: 110V AC
-
Frequency: 50/60Hz
-
Maximum Coring Diameter: 40 mm (1.57 inches)
-
Maximum Twist Drill Diameter: 16 mm
-
Maximum Speed: 580 RPM
-
Magnetic Holding Force: 12,000N
-
Maximum Stroke: 125 mm
-
Maximum Drilling Depth: 55 mm
-
Approximate Weight: 11 kg
Package Contents
The standard kit includes the magnetic drill, six core drill bits (12 mm, 16 mm, 18 mm, 20 mm, 24 mm and 26 mm), one 10 mm twist drill, a coolant tank, drill chuck, feed handles, safety rope, and user manual. Confirm the exact accessories supplied with your selected model before ordering.
Choose the VEVOR Magnetic Drill from TendSupplies.com for dependable drilling performance in compatible steel fabrication and industrial maintenance applications.
Contact Us: For further details and availability within the storefront in your location.
Order VEVOR 1100W Magnetic Drill Press with 1-1/2 with confidence
Availability: 10 units in stock. Product identity: Brand: Vevor Tools · SKU: MD40CLZJZT6JT0001V1.
