Air Hydraulic Pump | Auto Body Frame Machines and Pulling Post, Orange

Name: Air Hydraulic Pump | Auto Body Frame Machines and Pulling Post, Orange
Brand: Vevor Tools
SKU: CSMJTELECTRIC8CJIV0
Price: 132.14 USD
Availability: InStock
Rating: 5 (9 reviews)

Buy quality vevor tools and equipment from TEND SUPPLIES.

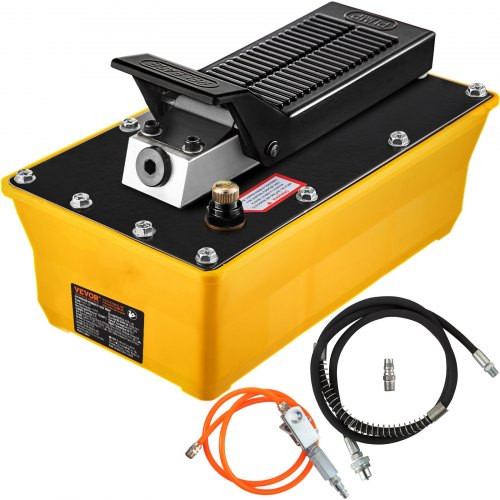

Our Vevor Air Hydraulic pump comes with its 6.6 ft/2 m extended oil hose, this air hydraulic pump promises longer-distance operation and improved security. To satisfy all of your needs, PTFE tape, an air inlet adapter, and a hydraulic coupler are offered.
You may position the air hydraulic pump to lessen slippage and vibration while it's operating thanks to the two fixing screw holes on the bottom of the pump. You will work in a more tranquil atmosphere.
Foot-Mounted Architecture: There is no need to buy additional hydraulic oil because our air hydraulic pump comes with it. Immediately usable right out of the package! The foot-actuated design is easy to operate and reduces labor costs for your operation. To apply pressure, simply tread lightly on it; to release it, simply rebound.

Specification

Hydraulic Pump Flow: 0.8 L/min (No-load); 0.16 L/min (Load)

Input Air Pressure Range: 110 PSI-145 PSI

Product Size (L x W x H): 10.3 x 5.4 x 7.3 in/262 x 136 x 186 mm

Air Inlet: NPT 1/4"

Model: NAP002

Product Weight: 19.6 lbs/8.9 kg

Oil Tank Capacity: 98 in³/1.6 L

Maximum Output Pressure: 10,000 PSI

Oil Outlet: NPT 3/8"

Contact Us: For further details and availability within the storefront in your location.

Order Air Hydraulic Pump | Auto Body Frame Machines and Pulling Post, Orange with confidence

Availability: 10 units in stock. Product identity: Brand: Vevor Tools · SKU: CSMJTELECTRIC8CJIV0.

This hydraulic product page retains the original product information above and adds the buying checks below to help confirm fit before checkout.

Common use cases

Industrial maintenance and repair
Lifting, pressing and controlled-force applications
Workshop and field hydraulic systems

Before you order

Match working pressure, capacity, flow, stroke and return type.
Confirm port size, thread standard, hose and coupler compatibility.
Verify fluid, seal material and environmental requirements.

Included-items check

The sale includes the product identified on this page and only the accessories expressly stated as included in the original description. Images may show application context; do not assume surrounding equipment or accessories are supplied unless listed.

Frequently asked questions

How do I confirm hydraulic compatibility?

Match pressure rating, flow, port and thread standard, fluid type, couplers and required capacity.

Can fittings that look similar be interchanged?

Not safely. Confirm the exact thread form, size, sealing method and pressure rating.

What safety checks are required?

Inspect hoses, fittings and components before use and follow the manufacturer's load, pressure and support procedures.
