VEVOR Air Hydraulic Pump, 10,000 PSI

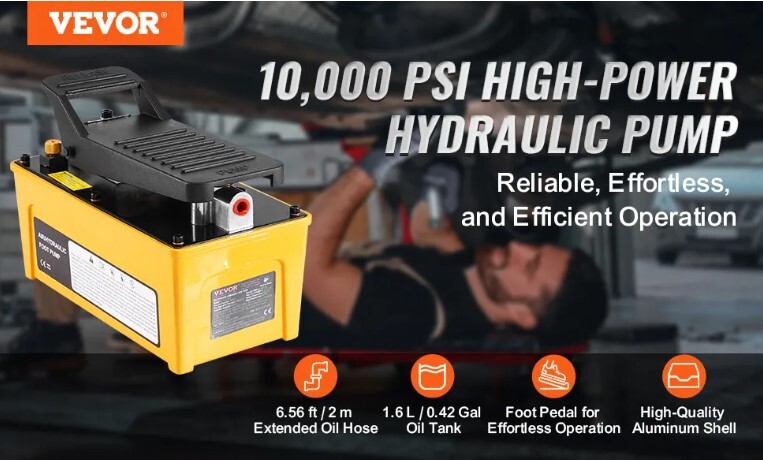

Power demanding hydraulic applications with the VEVOR Air Hydraulic Pump, 10,000 PSI, a pneumatic-powered hydraulic foot pump designed for automotive repair, industrial maintenance, fabrication, and workshop operations. Delivering hydraulic pressure up to 10,000 PSI (approximately 700 bar), this pump provides a practical power source for compatible single-acting hydraulic cylinders, presses, rams, and pullers.

Key Features and Benefits

High-Pressure Hydraulic Output: Generates up to 10,000 PSI of hydraulic pressure to support demanding lifting, pressing, bending, straightening, and assembly tasks when paired with compatible equipment.

Convenient Foot-Pedal Operation: The air-actuated foot control allows hands-free operation, helping operators manage hydraulic pressure while keeping their hands available for positioning workpieces and equipment.

1.6-Litre Oil Reservoir: The 0.42-gallon hydraulic oil tank provides capacity for suitable hydraulic applications. The listed version comes factory-filled with hydraulic oil to help simplify initial setup.

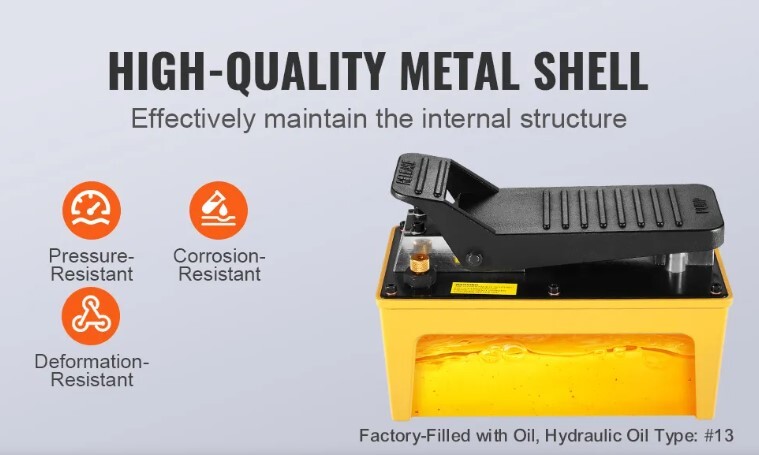

Durable Construction: The reinforced aluminum pump core and protective housing are designed for dependable use in demanding workshop and industrial environments.

High-Pressure Hydraulic Hose: The included approximately 2-metre hose provides flexible positioning when connecting the pump to compatible hydraulic equipment.

Built-In Pressure Relief Protection: An internal relief valve helps protect hydraulic components against excessive pressure when the system is operated correctly.

Applications

The VEVOR Air Hydraulic Pump is suitable for:

• Automotive body and frame repair equipment

• Hydraulic presses and compatible single-acting cylinders

• Industrial maintenance and repair

• Metal fabrication and workshop operations

• Hydraulic lifting, bending, and straightening tasks

• Assembly and disassembly applications using compatible hydraulic tools

Technical Specifications

• Brand: VEVOR

• Model/SKU: CGKQB18MJTHSFZYLPV0

• Product Type: Air-Powered Hydraulic Foot Pump

• Maximum Hydraulic Pressure: 10,000 PSI (approximately 700 bar)

• Oil Reservoir Capacity: 1.6 litres / 0.42 gallons

• Air Inlet: 1/4-inch NPT

• Hydraulic Oil Outlet: 3/8-inch NPT

• Required Air Pressure: Approximately 110–145 PSI

• Hydraulic Flow Rate: 0.8 L/min unloaded; 0.16 L/min under load

• Hose Length: Approximately 2 metres

• Approximate Weight: 8 kg

• Pump Action: Single-acting hydraulic system

Package Contents

The standard configuration includes the air hydraulic pump, high-pressure hydraulic hose, connection fittings, air connection components, and user manual. Confirm the exact included accessories and connector configuration for the selected variant before ordering.

Choose the VEVOR 10,000 PSI Air Hydraulic Pump from TendSupplies.com for powerful, controlled hydraulic operation in compatible automotive, industrial, and workshop applications.
