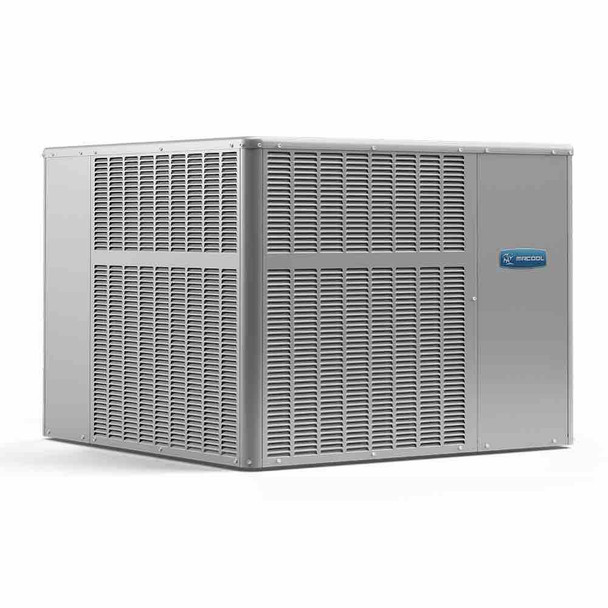

MRCOOL 24,000 BTU R410A 14 SEER Single Phase Packaged A/C Only Model MPC241M414A

This product is a brand new 2 ton, 208-230 volt, R410-A refrigerant, MRCOOL packaged air conditioning system. This air conditioner unit has a seasonal energy efficiency rating of 14 SEER, providing maximum comfort cooling. This unit only provides "cooling" (this is NOT a heat pump).

• Louvered coil guard protection
• Horizontal or down discharge capable
• Environmentally friendly R410A refrigerant
• Insulated to minimize heat loss and reduce sound
• Efficient constant torque motor for wide airflow range
• High and Low Threaded pressure switches for system protection
• Utility connections on right side
• One piece base design for strength and stability
• Rounded corners for safety and an attractive, clean appearance
• Available in 2, 2.5, 3, 3.5, 4, and 5 TON capacities
• All units ETL and ETLC approved and AHRI Certified
• One piece no leak top design

Product specification

SEER 14

EER 11

CFM 800

TONNAGE 2

COOLING CAPACITY 22600

VOLTAGE 208-230

PHASE 1

CYCLE 60

MAX FUSE BREAKER 20

MIN CIRCUIT AMPACITY 14.4

COLOR Gray

COLOR FAMILY Gray

RATED LOAD 8.6

MAX COVERAGE AREA 1000

REFRIGERANT TYPE R-410A

REFRIGERANT VOLUME 72

DECIBEL RATING 77

MIN AMBIENT HEAT 0

COMPRESSOR MOTOR TYPE Single Stage

CONDENSER FAN MOTOR TYPE ECM

CONDENSER FAN MOTOR HP 1/6

BLOWER MOTOR TYPE ECM

BLOWER MOTOR HP 1/3

BLOWER MOTOR SPEEDS Multi-speed

BLOWER MOTOR RPM 430-820

FILTER TYPE Replacable

FILTER SIZE 14x20

METERING DEVICE TXV

AUXILIARY HEATER INCLUDED No

AUXILIARY HEATER AVAILABLE Yes

AUXILIARY HEATER SIZES 5kw

UL RECONIZED No

UL LISTED No

ETL LISTED Yes

ETL CERTIFIED No L

EED CERTIFIED No

ASHRAE COMPLIANT No

ENERGY STAR COMPLIANT No

ENERGY STAR CERTIFIED No

AHRI CERTIFIED Yes

REGISTERED WARRANTY 10-Year Parts Limited Warranty

BASE WARRANTY 5 year base limited parts warranty

HAS BATTERIES No

CONTAINS ELECTRONICS Yes

CONTAINS CHEMICALS Yes

CONTAINS AEROSOL Yes

CONTAINS COMPRESSED GAS Yes

PROPOSITION 65 WARNING Yes

RESTRICTED STATES No

NET DEPTH 46.77

NET HEIGHT 36.82

NET WIDTH 46.8

NET WEIGHT 308

GROSS DEPTH 48

GROSS HEIGHT 42.5

GROSS WIDTH 48.75

GROSS WEIGHT 315

FREIGHT CLASS 125
