The wrench has a powerful new partner in the modern automotive workshop: the diagnostic scanner. As vehicles evolve into complex networks of computers on wheels, a technician's ability to accurately diagnose a problem is no longer just a skill, it's a direct function of the technology they wield. A simple code reader might point you to a faulty O2 sensor, but in 2025, that’s just scratching the surface. What if the sensor is fine, but the wiring is bad? What if the fuel trim is off because of a vacuum leak the ECU is trying to compensate for?

This is where professional-grade diagnostic scanners separate the guesswork from the guarantee. These sophisticated tools are the bridge between the mechanic and the vehicle's intricate electronic nervous system. They do more than just read Diagnostic Trouble Codes (DTCs); they provide a real-time view into the soul of the machine, command components to act on demand, and perform dealership-level functions right from your service bay. Investing in the right scanner is one of the most significant steps a technician can take to boost their efficiency, accuracy, and profitability.

But the market is flooded with options, from sub-$100 code readers to multi-thousand-dollar platforms. At Tend Industrial Supplies, we know that a tool is an investment, and this guide is designed to protect that investment. We will demystify the jargon and explore the critical features that define a truly professional scanner. We'll then reveal the 5 must-have diagnostic tools for 2025 that deliver the power, data, and functionality required to tackle any job that rolls into your shop.

Key Takeaways

• Go Beyond Code Reading: Professional diagnostics require more than just pulling DTCs. Key features to look for are Live Data Streaming (to see what the ECU sees), Bi-Directional Control (to command vehicle components), and advanced Service/Maintenance Functions.
• Bi-Directional Control is a Game-Changer: This is the single biggest differentiator between amateur and professional tools. The ability to command a fuel pump to turn on, cycle an ABS module, or actuate a solenoid can cut diagnostic time from hours to minutes.
• Understand the Tiers: The market consists of three main levels: Code Readers (basic DTCs), DIY Scanners (live data and some service functions), and Professional Bi-Directional Scanners (dealership-level control and functions).
• The "Cost of Ownership": When choosing a professional scanner, consider not just the upfront price but also the cost and frequency of software updates. Consistent updates are essential to maintain compatibility with new vehicles and features.
• Our Top Picks for 2025: Leading the professional market are brands like Autel, Launch, and TOPDON, each offering powerful tools at different price points that provide exceptional return on investment for the working technician.

The Diagnostic Tool Hierarchy - Understanding the Levels

Not all scanners are created equal. Understanding the different tiers is the first step in choosing the right tool and avoiding costly mistakes.

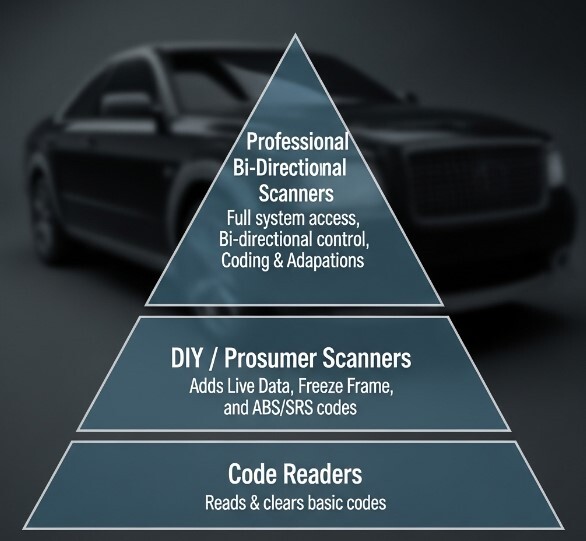

Infographic illustrating the Different levels of Diagnostic Scanners

Level 1: Basic OBD2 Code Readers

These are the entry-level tools you find at most auto parts stores.

• Functionality: They connect to the OBD2 port and can read and clear generic powertrain fault codes (P-codes). They can also show I/M Readiness status for emissions testing.
• Limitations: They cannot read manufacturer-specific codes (for ABS, SRS, transmission, etc.), view live sensor data, or perform any commands. They tell you that a problem exists, but give you very little information to diagnose why.

Level 2: DIY / Prosumer Scanners

A significant step up, these tools are perfect for the serious home mechanic or as a secondary "quick-scan" tool in a professional shop.

• Functionality: Includes everything from a code reader, plus the ability to read and clear codes from other modules like ABS, SRS (airbag), and Transmission. Crucially, they introduce Live Data Streaming, allowing you to view real-time data from sensors like engine RPM, vehicle speed, coolant temperature, and fuel trim.
• Limitations: They typically lack bi-directional control and advanced maintenance functions.

Level 3: Professional Bi-Directional Scanners

This is the required standard for any professional workshop. These tools transform the technician from a passive observer into an active participant in the diagnostic process.

• Functionality: Full system access to every module in the vehicle. The key feature is Bi-Directional Control, also known as "Active Tests." This allows the scanner to send commands directly to a vehicle's components.
• Example: Instead of manually testing a cooling fan, you can use the scanner to command the ECU to turn the fan on. If the fan runs, you know the fan and its circuit are good, and the problem likely lies with the sensor or the ECU itself. This capability is revolutionary for diagnostic efficiency.
• Additional Pro Features:
• Special Service Functions: Perform tasks like Electronic Parking Brake (EPB) retraction, steering angle sensor (SAS) calibration, oil light resets, battery registration, and DPF regeneration.
• Coding & Adaptations: Program new components to the vehicle, such as a new battery or fuel injectors.
• Graphing: Display live data in a graph format, which is essential for identifying intermittent issues or comparing the relationship between two sensors (e.g., crank and cam sensors).

The 5 Must-Have Diagnostic Scanners for 2025

After extensive research and analysis of real-world technician feedback, we've compiled the definitive list of scanners that provide the best combination of power, features, and value for the professional mechanic in 2025.

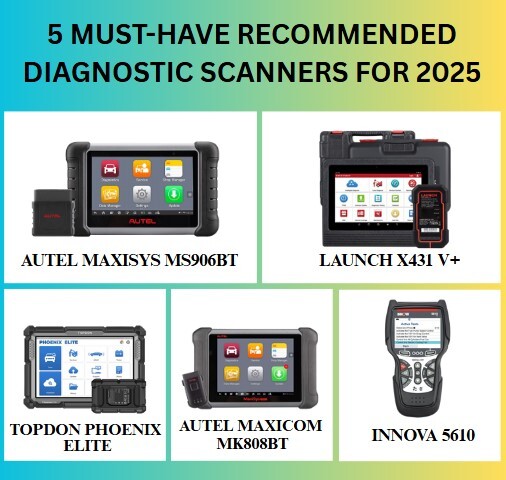

5 Must-Have Recommended Diagnostic Scanners for 2025

1. Autel MaxiSYS MS906BT: The Professional Workhorse

Why it's a must-have: The MS906BT hits the sweet spot for most independent auto shops. It offers robust, OE-level diagnostics and full bi-directional control in a fast, user-friendly Android-based tablet. It’s a reliable tool that can handle nearly any vehicle that comes into the bay.

2. Launch X431 V+: The Versatile Value Leader

Why it's a must-have: Launch has earned a reputation for providing dealership-level functionality at an incredibly competitive price point. The X431 V+ offers powerful bi-directional control and ECU coding capabilities that were once reserved for tools costing twice as much.

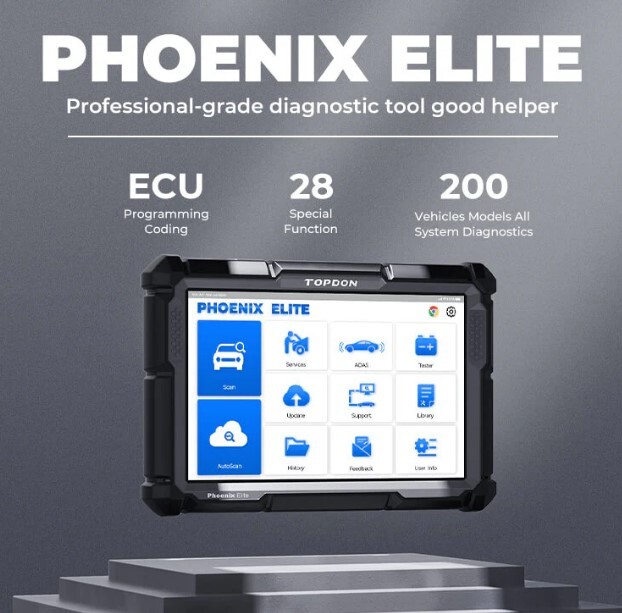

3. TOPDON Phoenix Elite: The Pinnacle of Modern Diagnostics

Why it's a must-have: The Phoenix Elite represents the top tier of professional scanners, designed for master technicians and diagnostic specialists. Its standout feature is online programming and coding for major brands like BMW, VW, and Audi, and it includes a 4-channel oscilloscope for deep electrical diagnostics.

4. Autel MaxiCOM MK808BT: The Ultimate "Second" Scanner

Why it's a must-have: While the other tools on this list are primary scanners, the MK808BT is arguably the best-value secondary or "quick-scan" tool on the market. It provides a surprising level of power, including many service functions and all-system diagnosis, in a compact and affordable package.

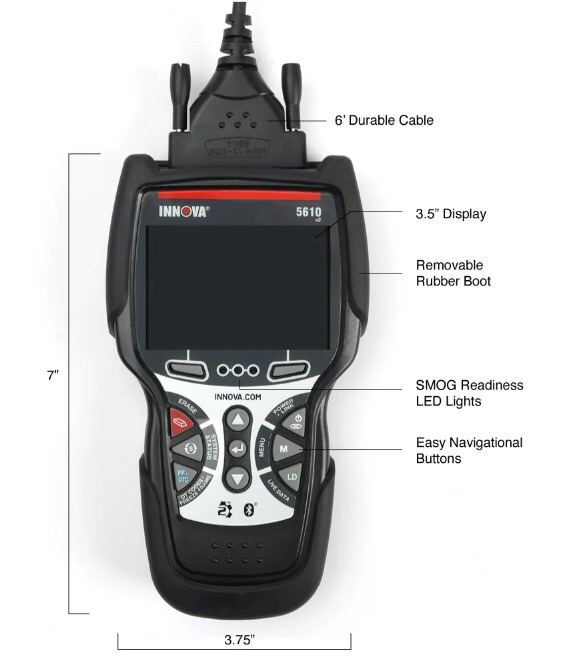

5. Innova 5610: The Best of the "Code Reader Plus" Category

Why it's a must-have: For technicians who need more than a basic reader but aren't ready to invest in a full tablet system, the Innova 5610 is a phenomenal tool. It's a handheld device that provides advanced features like live data graphing, ABS bleeding, and battery system checks, including support for hybrid vehicle batteries. When diagnosing complex electrical faults, having reliable power is key, an area where quality systems like those using Dakota Lithium Batteries excel.

Frequently Asked Questions (FAQs)

1. What is "Topology Mapping" on high-end scanners? Topology Mapping is a feature that displays a graphical layout of the vehicle's entire network of control modules (ECUs). It shows how all the modules communicate with each other and provides a one-glance view of the health of the entire system, highlighting which modules have fault codes. It's an incredibly fast way to assess the overall electronic health of a vehicle.
2. Can I use one of these scanners to program a new key fob? Yes, most professional bi-directional scanners (like the Autel MS906BT, Launch X431, and TOPDON Phoenix Elite) have Immobilizer (IMMO) and key programming functions. However, the level of access varies greatly by vehicle manufacturer. While they can handle key programming for many common vehicles, some high-security systems may still require specialized locksmith tools or dealership software.
3. Do I have to pay for software updates after the free period ends? For most professional tablet scanners, yes. After the initial free period (typically 1-2 years), you will need to purchase an annual software subscription to continue receiving updates for new vehicles, features, and bug fixes. The scanner will usually continue to function on the last installed software if you don't renew, but you will lose compatibility with newer model years.
4. What does "ECU Coding" actually do? ECU Coding allows you to alter certain parameters within a vehicle's control module. This can be used for several purposes: to tell the vehicle it has a new component (like registering a new battery type), to unlock hidden features (like enabling "needle sweep" on a VW/Audi), or to customize vehicle settings (like changing the behavior of the daytime running lights).
5. Is a wireless (Bluetooth) VCI better than a wired connection? A wireless VCI (Vehicle Communication Interface) is a massive convenience. It allows you to operate the scanner tablet from a workbench or under the hood while the VCI dongle remains plugged into the OBD2 port. This untethers you from the driver's seat and gives you the freedom to move around the vehicle while viewing live data or performing active tests, a significant advantage over a wired connection.

Conclusion

In today's automotive repair landscape, your diagnostic scanner is your most powerful weapon against complexity and inefficiency. Moving beyond simple code readers and embracing the power of bi-directional control and advanced service functions is no longer a luxury, it's essential for survival and profitability. The right scanner allows you to diagnose problems faster, perform more services in-house, and complete repairs with a level of confidence that builds customer trust and loyalty.

Whether you're an independent shop owner needing an all-around workhorse like the Autel MS906BT, a value-conscious technician opting for the Launch X431 V+, or a master tech requiring the advanced programming of the TOPDON Phoenix Elite, your investment in a quality diagnostic tool will pay for itself faster than any other piece of equipment in your bay.
