Shinano 5-Inch Air Grinder Review: M14 vs 5/8-11 Spindle

Tend Industrial Knowledge Center / Product comparisons

Looking for the best 5-inch air angle grinder for a professional workshop? Shinano deserves a place on your shortlist—but the model number matters as much as the brand. This review explains the SI-AG5 industrial range, the separate SI-2515LA, and the accessory decision that is easy to overlook: M14×2 versus 5/8-11 UNC.

Review method and disclosure: Tend Industrial Supplies sells Shinano tools. This is a specification-led buying review using manufacturer documents and supplied photographs, not a controlled endurance or material-removal test. Specifications checked 24 September 2026. No universal “world’s best” ranking is claimed.

Jump to: Exact models · Spindle compatibility · Premium competitors · Air supply · Buying checklist · FAQs

First, separate the SI-AG5 from the SI-2515LA

“Shinano 5-inch grinder” does not identify one interchangeable product. The SI-AG5-E3/E4 industrial family and SI-2515LA are different platforms. Do not transfer the power, weight, air-use figures or accessories from one to the other.

Sources: Shinano industrial catalogue, 5-inch grinder table and official SI-2515LA specification.

M14×2 vs 5/8-11: compatibility, not a power upgrade

The spindle is the threaded shaft that works with the specified mounting hardware or threaded accessory. M14×2 denotes a nominal 14 mm metric thread with a 2 mm pitch. 5/8-11 UNC denotes a nominal 5/8-inch thread with 11 threads per inch. They are not interchangeable. Buying the wrong version can leave a shop with accessories that cannot be fitted correctly.

The industrial catalogue lists a 125 × 6 × 22.2 mm grinding disc for the SI-AG5 family. Those numbers describe diameter, thickness and bore—not a 22.2 mm spindle thread. Nor does that reference approve every disc with those dimensions. Application, guard, flange arrangement and the accessory’s maximum speed must all agree with the exact tool instructions.

Palm or long grip?

Choose the control layout after considering access, hand position, hose routing and the operator’s normal task. If you can, trial the exact version before standardising several workstations. A comfortable unloaded grip is not proof of comfortable full-shift grinding. Check the manufacturer’s declared vibration values and your workplace exposure assessment too.

For the wider selection process, read our air grinder selection and usage guide. For smaller, confined features rather than open-surface grinding, explore air die grinders instead of assuming a 5-inch wheel is the right answer.

Shinano versus Ingersoll Rand, Chicago Pneumatic and Dynabrade

A useful shortlist compares exact configurations rather than brand reputations. The following alternatives share the nominal 5-inch category, but their specifications do not establish equal accessories, equal air demand or equal performance under load.

Manufacturer sources: Ingersoll Rand MAX series, CP7550-B, Dynabrade 52633. *Conversion uses 1 mechanical hp ≈ 745.7 W. Manufacturer rating methods may differ.

Our interpretation: the SI-AG5 belongs in a serious premium comparison, but it is neither the lightest nor the highest-power entry here. Its practical buying case is the combination of a specialist industrial platform, documented model choices and a configuration that can be matched deliberately to the workshop. A same-condition trial is the right way to establish productivity.

What about price and Japan assembly?

The original review highlights Japanese assembly as part of Shinano’s appeal. Confirm the origin marking and paperwork for the exact unit being purchased; manufacturing provenance is not a substitute for an endurance test. Our Shinano range is the place to start comparing available tools.

Tend’s SI-2515LA listing displayed $311 when checked. That is not an SI-AG5 quotation. Dynabrade’s official 52633 page displayed $1,063 before tax. We have not verified a current SI-AG5 transaction price or refreshed IR/CP dealer quotations, so we do not manufacture a “best value” price ranking. Confirm current price, tax, shipping, included flanges, guard, warranty and lead time together.

Air demand: the hidden buying decision

An impressive grinder can disappoint on an inadequate air line. Tank size alone does not tell you whether the compressor can sustain the tool. Start with delivered flow at the required operating pressure, then account for simultaneous users and restrictions between the receiver and tool.

We intentionally do not plot those figures as an “air efficiency winner” chart: the labels are different. Ask for comparable operating-condition data before sizing a production installation. The Tend air-tool specification calculator can help organise CFM, compressor and hose planning; it does not replace the exact tool manual or an air-system assessment.

For line preparation, see which FRL equipment an auto repair shop should buy first. For a multi-user setup, use our professional pneumatic tool and air-system setup service. Send the compressor’s delivered-flow rating, hose length and inside diameter, fittings and number of simultaneous tools.

A better purchase order: six items to confirm

1. Exact SKU and nameplate: SI-AG5-E3P, E4P, E3L, E4L or SI-2515LA—not simply “Shinano 5 inch”.
2. Thread and mounting system: specify the spindle plus the approved guard, flanges, nut and accessory type.
3. Actual job: material, access, finish requirement and expected work pattern. A brand name does not define an application.
4. Air supply: confirm operating pressure, required flow and hose/fitting suitability at the point of use.
5. Commercial package: ask what is included, current stock or lead time, delivery cost, warranty terms and parts support.
6. Acceptance trial: where productivity matters, test the selected tool with the intended abrasive and a repeatable job before a fleet purchase.

How to test “best” in your own workshop

A useful trial compares the same material, approved abrasive type, operator technique and measured inlet conditions. Record time to complete an agreed task, abrasive consumption, finish quality, operator feedback and any interruptions. Do not compare one tool on a short unrestricted line with another on a long restrictive hose and attribute the result to the motor.

That produces a purchasing decision your team can defend. “Best for our weld-finishing station under these conditions” is much more valuable than “best in the world” without evidence.

Safety and maintenance essentials

Read the exact tool and abrasive instructions before use. Disconnect the air supply before changing accessories. Inspect the tool, hose, wheel and mounting parts; keep the correct guard fitted. Use an undamaged, approved accessory with a speed rating suitable for the tool. Do not force incompatible threads, remove guards to fit a larger wheel, or use a cut-off wheel for side grinding.

Secure the work, control sparks and dust, and use the required eye, face, hearing, respiratory and body protection. Stop if vibration, noise or operation becomes abnormal. Follow the lubrication and air-pressure limits in the manufacturer’s instructions. See Shinano’s safety instructions; this buying guide is not a substitute for operator training.

Frequently asked questions

Is Shinano the best 5-inch angle grinder in the world?

It is a credible premium option, particularly when its configuration matches an established pneumatic workshop. There is no universal winner established by this review. Air capacity, accessories, handling, support and a task-specific trial should decide the purchase.

Is M14 the same as 5/8-11?

No. They have different nominal diameters and thread pitches. Never assume that a wheel’s bore or a “5-inch” label makes threaded hardware interchangeable.

Are the SI-2515LA and SI-AG5 the same tool?

No. Shinano publishes separate specifications. In particular, the SI-2515LA is listed at 570 W; the SI-AG5 models compared here are listed at 800 W. Check the full model identifier.

Can I run this grinder on a small portable compressor?

Do not decide from tank capacity alone. Compare delivered airflow at operating pressure with the exact model’s requirement and intended duty. If supply cannot keep up, pressure and performance can fall.

Does a 22.2 mm bore tell me which spindle to buy?

No. The bore is the wheel’s centre opening. The tool’s thread, mounting hardware, guard and permitted wheel specification must be checked separately.

Continue your research

• Industrial buying guides — broaden the procurement checklist.
• Product comparisons — compare alternatives by application.
• Air die grinders — investigate tools for smaller features and restricted spaces.
• Shinano SI-2011S die grinder — a different tool category, not a substitute mounting system for 5-inch wheels.

Sources and image credits

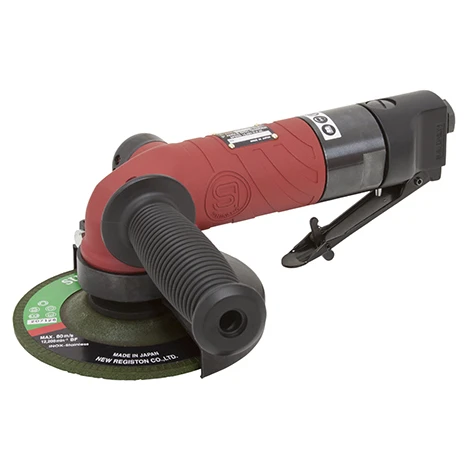

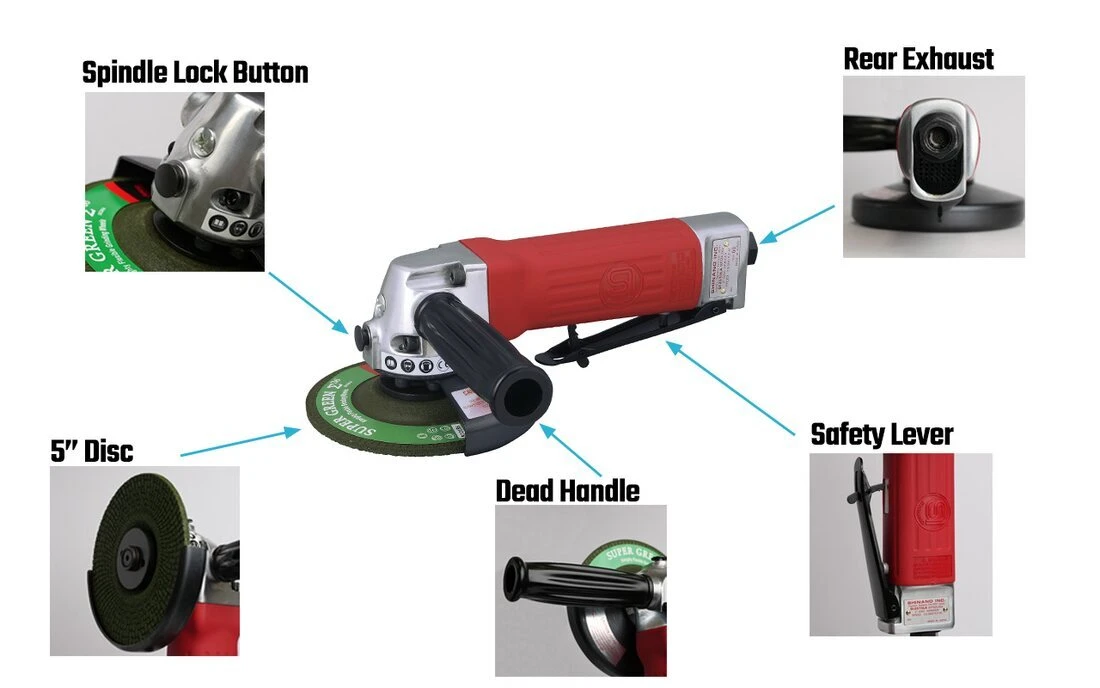

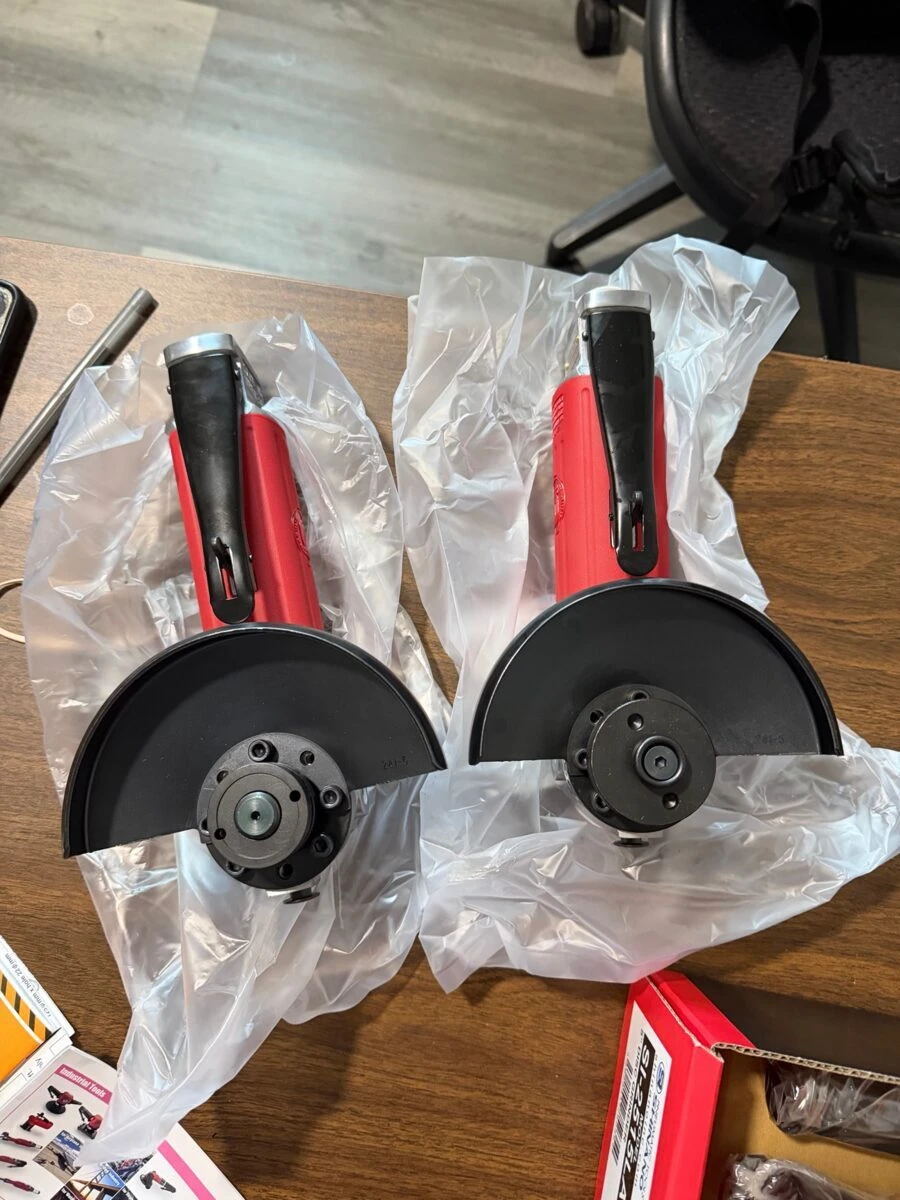

Manufacturer specifications and comparison sources are linked beside their tables. The SI-AG5 photograph is credited to Shinano; the two-tool photograph and SI-2515LA feature illustration were supplied for this Tend article. Published power figures are not independent test results. Confirm model, accessories, availability and commercial terms before purchase.
